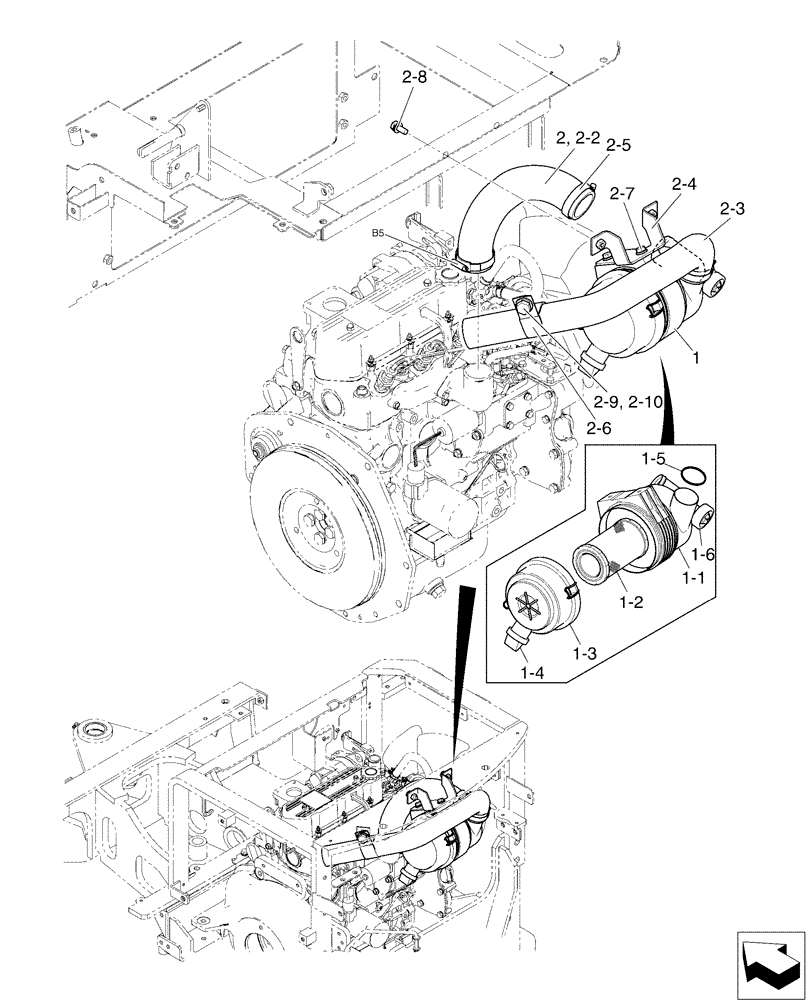

Запчасти Case CX17B (01-011) - CLEANER ASSY, AIR (10) - ENGINE

PU11P00006F1

Cleaner Assy., Air

1шт.

1

PU11P00005F1

AIR CLEANER

1шт.

1-1

PU11P00005S001

Cleaner, Air

1шт.

1-2

PM11P00006S002

ELEMENT

Filter

1шт.

1-3

PM11P00006S003

COVER ASSY

1шт.

1-4

2446U242S4

VALVE

1шт.

1-5

PM11P00006S005

O-RING

1шт.

1-6

YY11P01002F1

INDICATOR

1шт.

2

PU11P00002F1

Cleaner Assy., Air

1шт.

2-2

PU11P01005P1

HOSE

Air

1шт.

2-3

PU11P01006P1

HOSE

Air

1шт.

2-4

PU11P01030P1

BRACKET

1шт.

2-5

ZC16X05000

CLIP

3шт.

2-6

ZC46X46014

CLIP

1шт.

2-7

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

2-8

PA03M01093D2

BOLT

Sems

2шт.

2-9

ZS18C12020

SCREW,Hex, M12 x 20mm

Cap

1шт.

2-10

ZW16H12000

WASHER

1шт.
