(01-011[00]) - AIR CLEANER & INTAKE PARTS (POST MOD)

Запчасти Case CX17B (01-011[00]) - AIR CLEANER & INTAKE PARTS (POST MOD) (10) - ENGINE

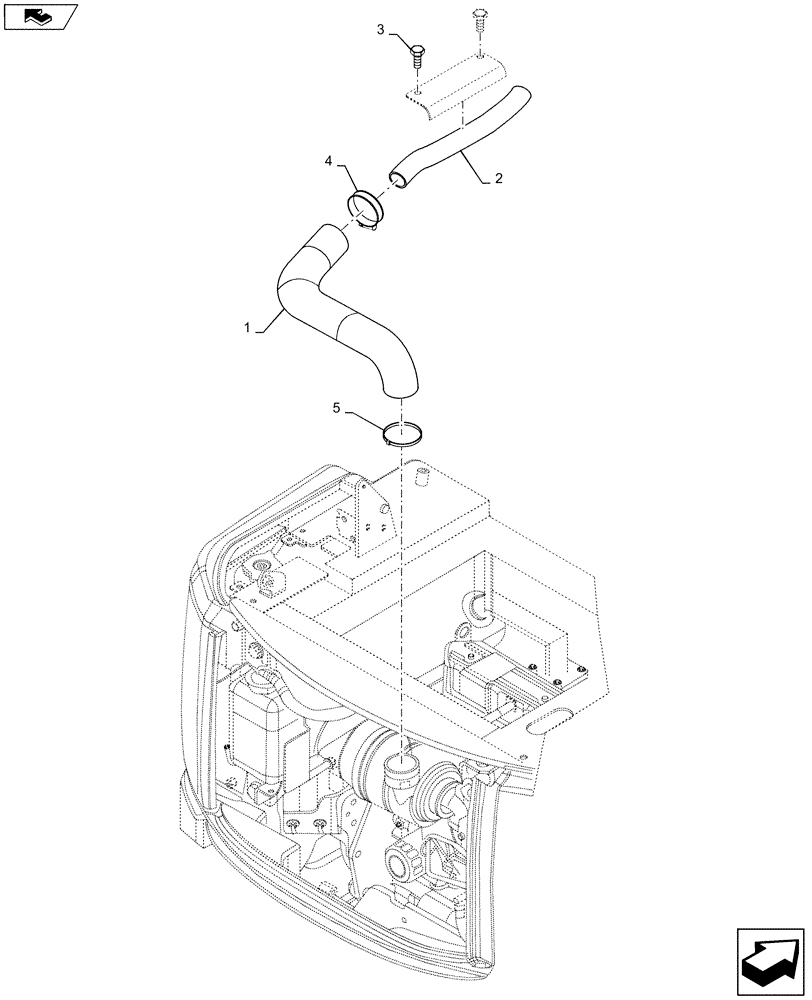

Схема запчастей Case CX17B - (01-011[00]) - AIR CLEANER & INTAKE PARTS (POST MOD) (10) - ENGINE
1
3
home
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PU11P01048P1

HOSE

(Added by Assist # U0109370)

1шт.

2

PU11P01051P1

TUBE

(Added by Assist # U0109370)

1шт.

3

ZM73C08016

BOLT,M8x16mm - Course Thread

(Added by Assist # U0109370)

2шт.

4

ZC16X04500

CLIP

(Added by Assist # U0109370)

1шт.

5

PY01P01043D3

CABLE TIE,188mm L

(Added by Assist # U0109370)

2шт.
