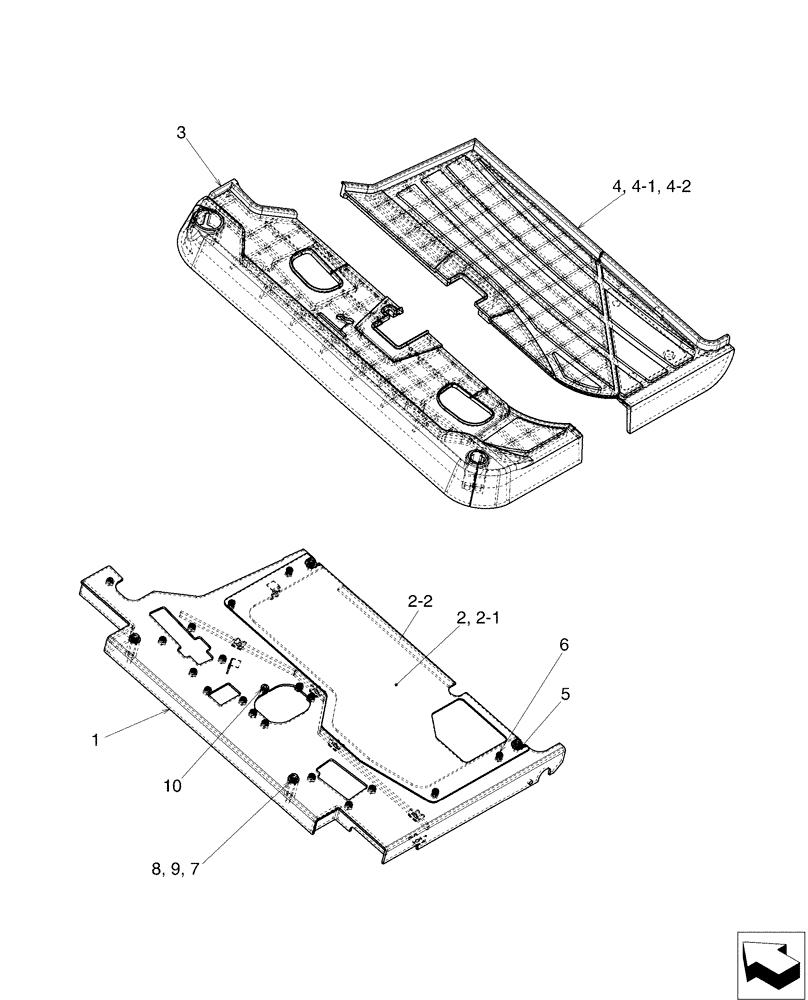

Запчасти Case CX17B (01-040) - PLATE GROUP, FLOOR - NIBBLER AND BREAKER (90) - PLATFORM, CAB, BODYWORK AND DECALS

PU03M00044F1

Plate Group, Floor (Nibbler & Breaker)

1шт.

1

PU03M01495P1

PLATE

1шт.

2

PU03M01138F1

COVER ASSY

1шт.

2-1

PU03M01132P2

PLATE

1шт.

2-2

YW21C01100D2

INSULATING PANEL

Rubber, Cushion

1шт.

3

PU26M00015P1

FLOOR MAT

1шт.

4

PU26M00006F1

FLOOR MAT

1шт.

4-1

PU26M00008P1

Mat, Floor

1шт.

4-2

PU26M01012P1

PLATE

1шт.

5

YR21C01159P1

BOLT

Sems

2шт.

6

ZS28C06012

CAPSCREW,Hex Socket Head, M6 x 12mm

4шт.

7

ZS18C08070

SCREW,Hex, M8 x 70mm

2шт.

8

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

2шт.

9

ZW26X08000

LOCK WASHER

Lock

2шт.

10

YN03M01159P1

GROMMET

1шт.
