(01-033) - KEY ASSY

Запчасти Case CX17B (01-033) - KEY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

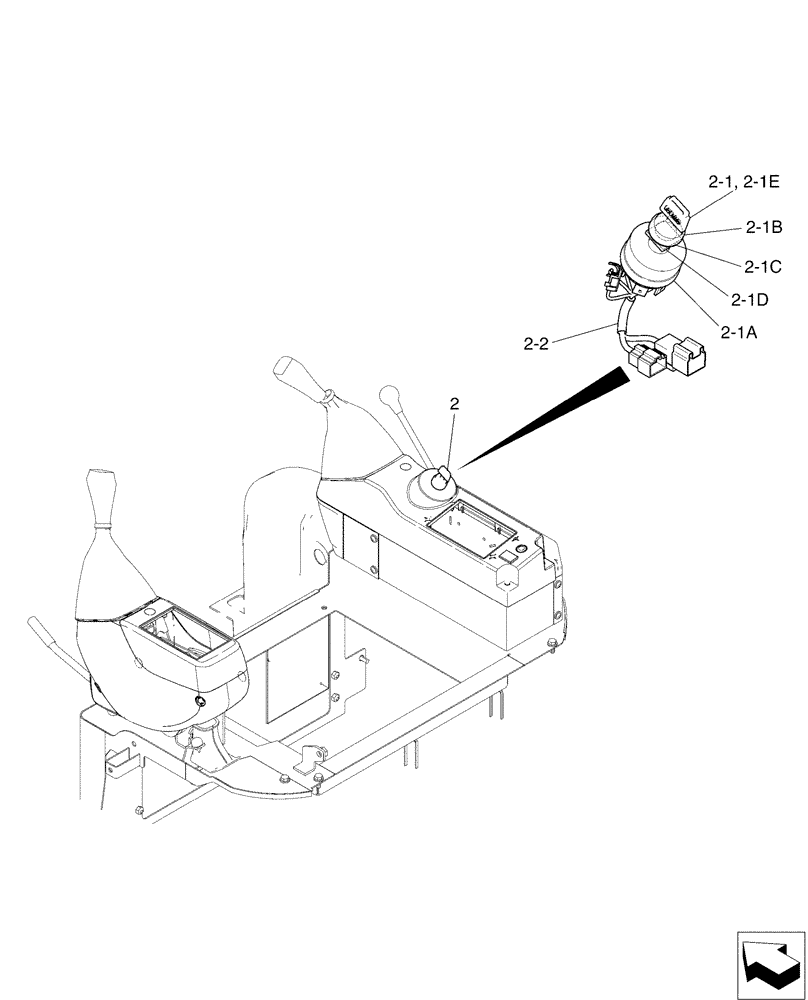

Схема запчастей Case CX17B - (01-033) - KEY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
2-2
2-1
2
2-1d
2-1e
2-1c
2-1b
2-1a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW03M01869F1

Key Assy.

1шт.

2

PW50E00003F1

IGNITION SWITCH

1шт.

2-1

PW50S00005F1

SWITCH

Key

1шт.

2-1a

PW50S00005S001

SWITCH

1шт.

2-1b

PW50S00004S004

NUT

1шт.

2-1c

YN50S00002S005

WASHER

1шт.

2-1d

YN50S00002S003

WASHER

2шт.

2-1e

PM50S01001P1

SET OF 2 KEYS

KEY, LOCK

1шт.

2-2

PW50E01002P1

HARNESS

1шт.
