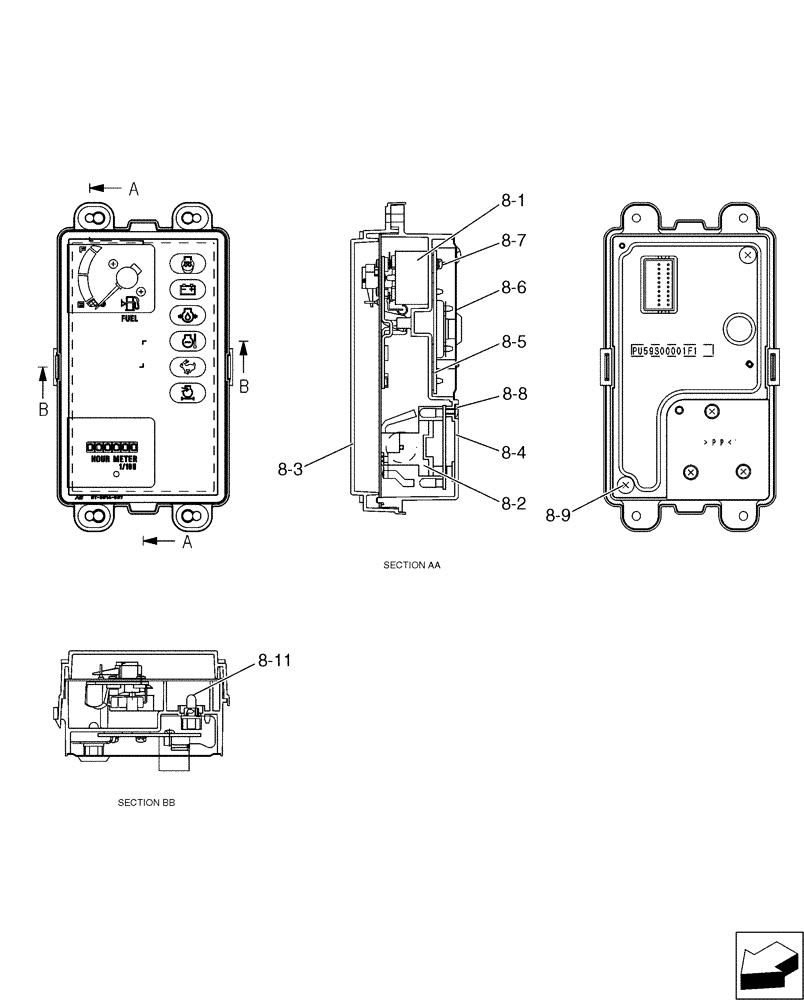

Запчасти Case CX17B (01-031[02]) - COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX17B - (01-031[02]) - COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/660881.png)
8-3
8-1
8-5
8-4
8-11
8-7
8-6
8-9
8-2
8-8
№
Артикул
Название
Примечание
Количество
PU03M01396F1
Cover Assy.
1шт.
8
PU59S00001F1
GAUGE
Cluster
1шт.
8-1
PU59S00001S001
INSTRUMENT PANEL
1шт.
8-2
PM59S00002S007
METER
1шт.
8-3
PM59S00002S008
GLASS
1шт.
8-4
PM59S00002S009
CASE
1шт.
8-5
PM59S00002S012
BOARD
Printed
1шт.
8-6
PM59S00002S013
COVER
1шт.
8-7
PM59S00002S014
SCREW
Machine
3шт.
8-8
PH59S00002S012
SCREW
3шт.
8-9
PM59S00002S016
SCREW
Tapping
2шт.
8-11
PU59S00001S011
BULB
7шт.
Выбрано товаров: 12
