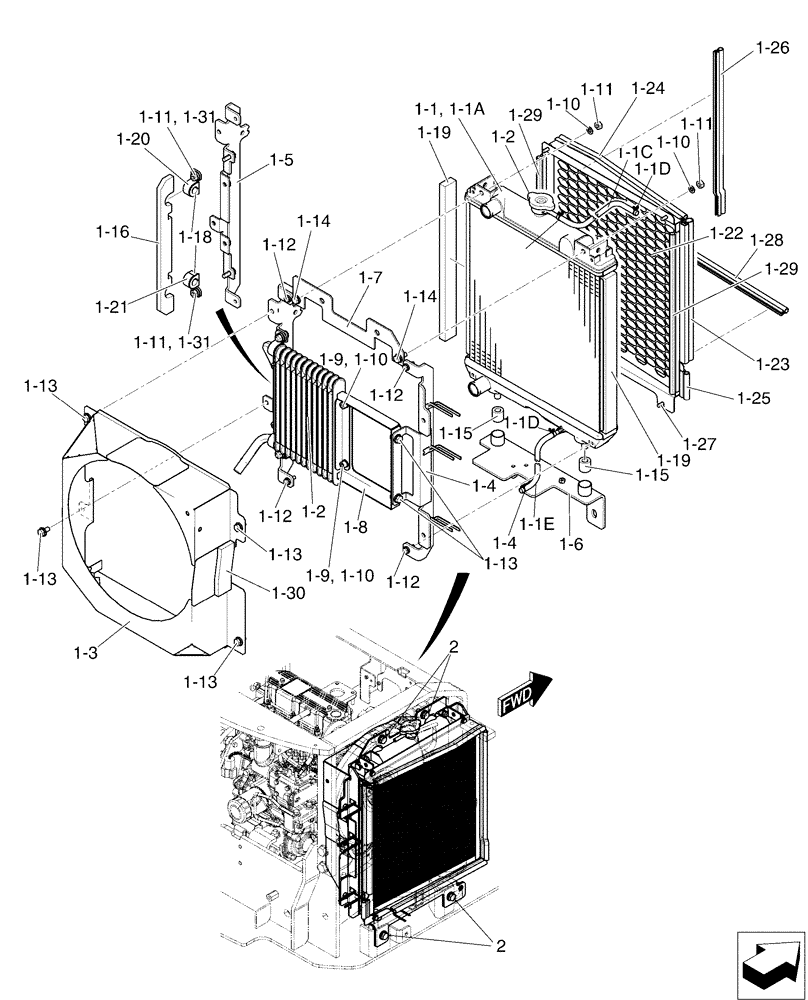

Запчасти Case CX17B (01-010) - RADIATOR INSTAL (10) - ENGINE

PU05P00018F1

Radiator Instal

1шт.

1

PU05P00019F1

Radiator Assy.

1шт.

1-1

PU05P00014F1

RADIATOR

1шт.

1-1a

PU05P00014S001

RADIATOR

1шт.

1-1b

PM05P00013S002

RADIATOR CAP

1шт.

1-1c

PU05P00014S003

HOSE

1шт.

1-1d

PR05P00008S004

CLIP

4шт.

1-1e

PM05P00013S004

HOSE

1шт.

1-2

PU53V00001P1

OIL COOLER

1шт.

1-3

PU05P01098P1

SHROUD

1шт.

1-4

PU05P01034P1

BRACKET

1шт.

1-5

PU05P01111P1

BRACKET

1шт.

1-6

PU05P01173P1

BRACKET

1шт.

1-7

PU05P01159P1

BRACKET

1шт.

1-8

PU05P01064P1

BRACKET

1шт.

1-9

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

Cap

4шт.

1-10

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

6шт.

1-11

ZN18C08007

NUT

4шт.

1-12

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

4шт.

1-13

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

6шт.

1-14

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

1-15

PH05P01144P1

RUBBER

2шт.

1-16

PU05P01116P1

RUBBER SLEEVE

1шт.

1-18

PU05P01115P1

GROMMET

2шт.

1-19

PU05P01050P1

FOAM INSULATION

2шт.

1-20

PU05P01113P1

CLAMP

1шт.

1-21

PU05P01114P1

CLAMP

1шт.

1-22

PU05P01171P1

GUARD

1шт.

1-23

YN21C01528DB

RUBBER SEAL

1шт.

1-24

YR21C01168DK

RUBBER SEAL

1шт.

1-25

YR21C01168DC

WEATHERSTRIP

1шт.

1-26

YJ21C01103D8

RUBBER SEAL

1шт.

1-27

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

4шт.

1-28

YR21C01168D9

RUBBER SEAL

1шт.

1-30

PU05P01109P1

RUBBER SLEEVE

1шт.

1-31

ZW16H08000

WASHER

2шт.

1-32

PU05P01158P1

RUBBER SEAL

2шт.

2

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.
