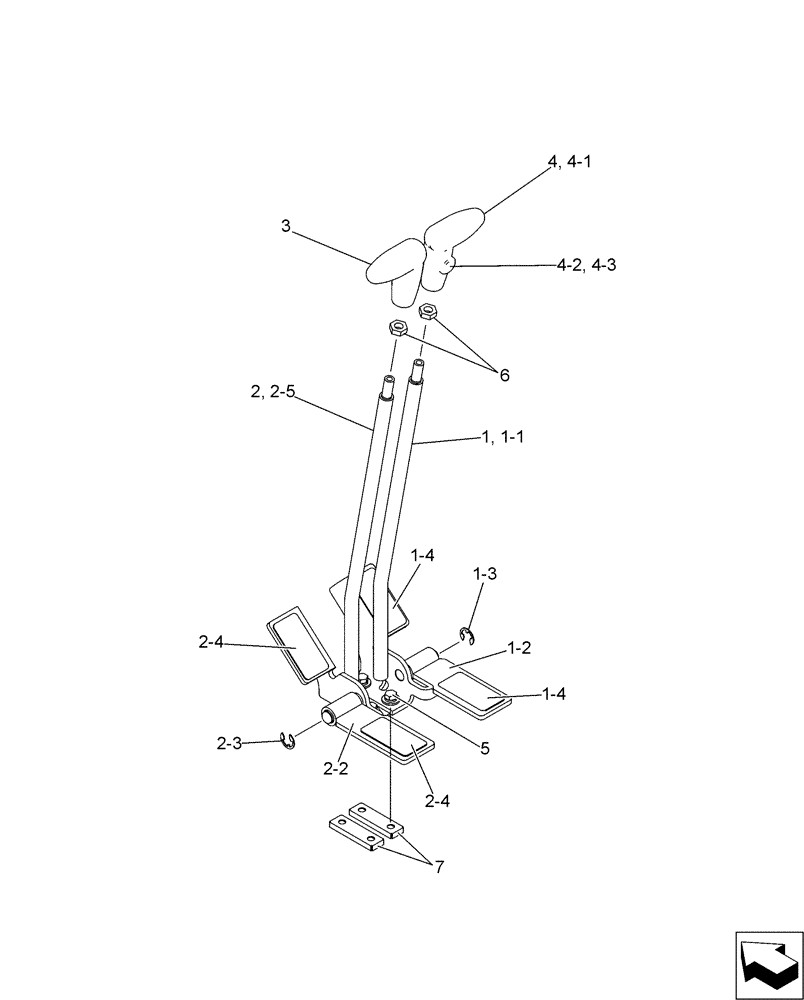

Запчасти Case CX17B (01-030) - LEVER ASSY, CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

PU50M00016F1

Lever Assy., Control

1шт.

1

PF50M01025F1

LEVER ASSY.

1шт.

1-1

PF50M01022P1

LEVER

1шт.

1-2

PF55M01007P1

PEDAL

1шт.

1-3

ZR36X01200

RING

Snap

1шт.

1-4

PF55M01006P1

SEAT

3шт.

2

PF50M01025F2

LEVER ASSY.

1шт.

2-2

PF55M01007P1

PEDAL

1шт.

2-3

ZR36X01200

RING

Snap

1шт.

2-4

PF55M01006P1

SEAT

3шт.

2-5

PF50M01023P1

LEVER

1шт.

3

YN03M01040P1

GRIP

1шт.

4

YN03M01286F1

GRIP

1шт.

4-1

YN03M01286S001

GRIP

1шт.

4-2

YN03M01286S002

SWITCH

(Used for 2-speed Select)

1шт.

4-3

YN03M01286S003

CAP

1шт.

5

PA21C01133P1

BOLT

Sems

4шт.

6

2420Z1232

NUT

2шт.

7

PW03M01889P2

COVER

2шт.
