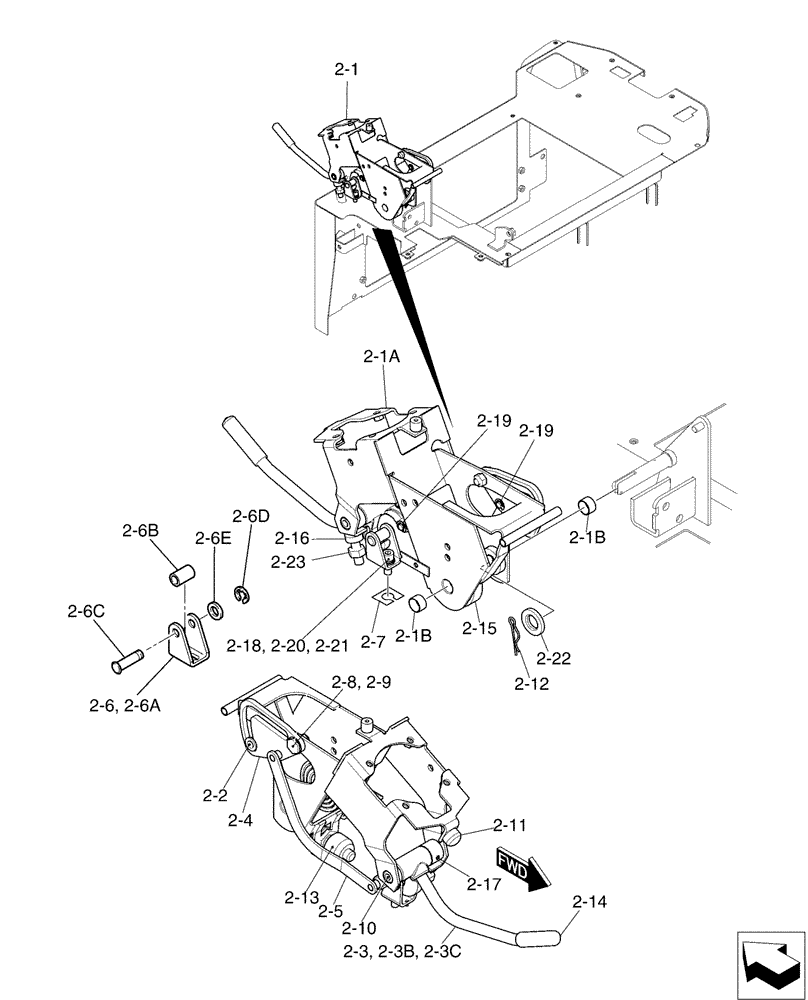

Запчасти Case CX17B (01-025[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

PU03M00043F1

Controls, Operators

1шт.

2

PU03M00036F1

Control Box Assembly, Incl 2-1 - 2-23

1шт.

2-1

PU03M00037F1

CONTROL

Box Assembly, Incl 2-1A & 2-1B

1шт.

2-1a

PU03M01355P3

CONTROL

Box

1шт.

2-1b

2405R312D1610

BUSHING

2шт.

2-2

YT03M01099P1

ROLLER

1шт.

2-3

PM03M01191F2

LOCK

Assembly, Incl 2-3B & 2-3C

1шт.

2-3b

2405R312D1415

BUSHING

2шт.

2-3c

PM03M01190P2

LOCK

1шт.

2-4

PW03M01219P1

PLATE

1шт.

2-5

PW03M01218P3

ROD

1шт.

2-6

PM03M01221F1

SUPPORT

Assembly, Incl 2-6A - 2-6E

1шт.

2-6a

PM03M01296P2

SUPPORT

1шт.

2-6b

YT03M01066P1

ROLLER,12.7mm OD x 19mm L

1шт.

2-6c

YT03M01065P1

PIN

1шт.

2-6d

ZR36X00700

RING

Snap

1шт.

2-6e

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

2-7

YT03M01144P1

SHIM

(0.3)

1шт.

2-8

PA03M01070P1

SHAFT

1шт.

2-9

PA03M01171P1

WASHER

1шт.

2-10

PA03M01073P1

SHAFT

1шт.

2-11

PA03M01013P1

RUBBER

1шт.

2-12

2419R9D6

PIN

1шт.

2-13

PA50S00001P1

LIMIT SWITCH

1шт.

2-14

2414Z270D1

CAP

1шт.

2-15

PH03M01017P1

SPRING

1шт.

2-16

PY06C01040P1

STOP

1шт.

2-17

ZS83C05006

SET SCREW

1шт.

2-18

PM03M01471D2

CAPSCREW,BHD, M8

Cap

1шт.

2-19

ZR36X00700

RING

Snap

2шт.

2-20

ZW26K08000

LOCK WASHER

1шт.

2-21

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

1шт.

2-22

ZW16H16000

WASHER

1шт.

2-23

ZN18F10008

NUT

1шт.
