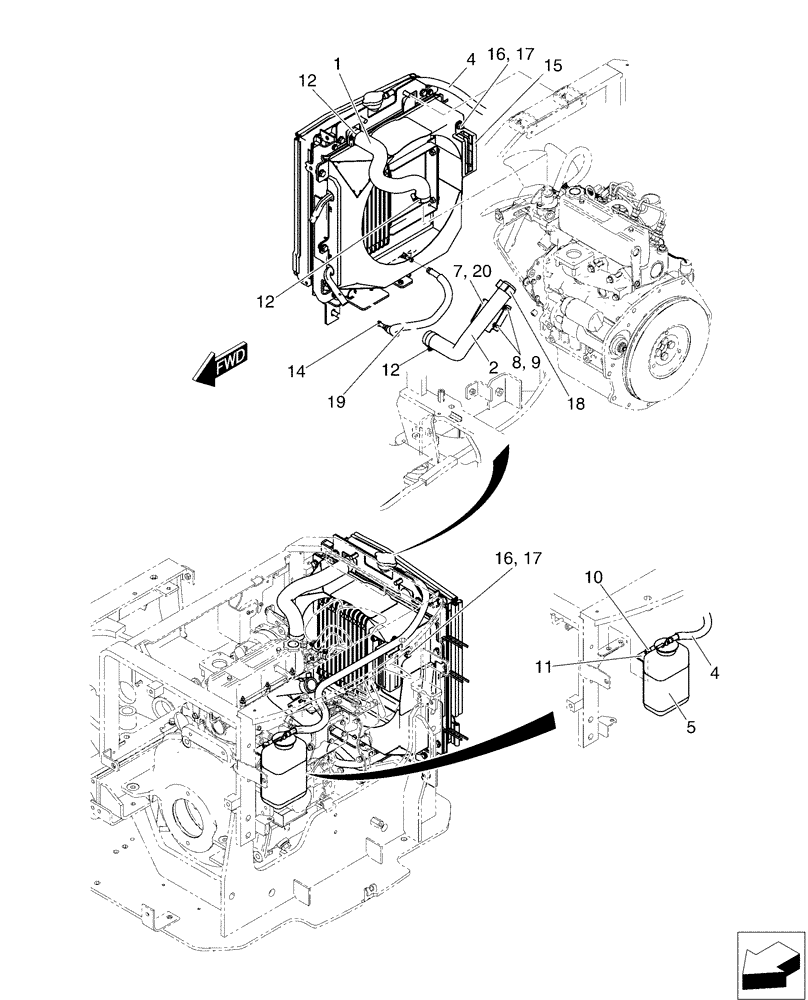

Запчасти Case CX17B (01-009) - RADIATOR GROUP (10) - ENGINE

PU05P00020F1

Radiator Group

1шт.

1

PU05P01016P1

RADIATOR HOSE

Radiator

1шт.

2

PU05P01017P1

RADIATOR HOSE

Radiator

1шт.

4

PU13E01002DE

TUBE

1шт.

5

PU05P01018F1

TANK

Water, Sub

1шт.

7

PU05P01145P1

GUIDE

1шт.

8

ZS18C06012

SCREW,Hex, M6 x 12mm

Cap

2шт.

9

ZW16H06000

WASHER

2шт.

10

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

11

PU05P01169P1

BRACKET

1шт.

12

ZC16X03300

FASTENER

Clip

3шт.

14

PW05P01117P1

PLUG

1шт.

15

PU05P01073P1

PLATE

1шт.

16

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap, Serial Range: PU09-08001-PU09-08583

2шт.

16

ZM73C08016

BOLT,M8x16mm - Course Thread

, Start Serial: PU09-08584

2шт.

17

ZW16H08000

WASHER

, Serial Range: PU09-08001-PU09-08583

2шт.

18

PH05P01088D3

CLIP

1шт.

19

PU13E01002DC

TUBE

1шт.

20

PU05P01148P1

RUBBER SEAL

1шт.
