(05-008) - BUCKET ASSY 450W - TOOTH 18S

Запчасти Case CX17B (05-008) - BUCKET ASSY 450W - TOOTH 18S (84) - BOOMS, DIPPERS & BUCKETS

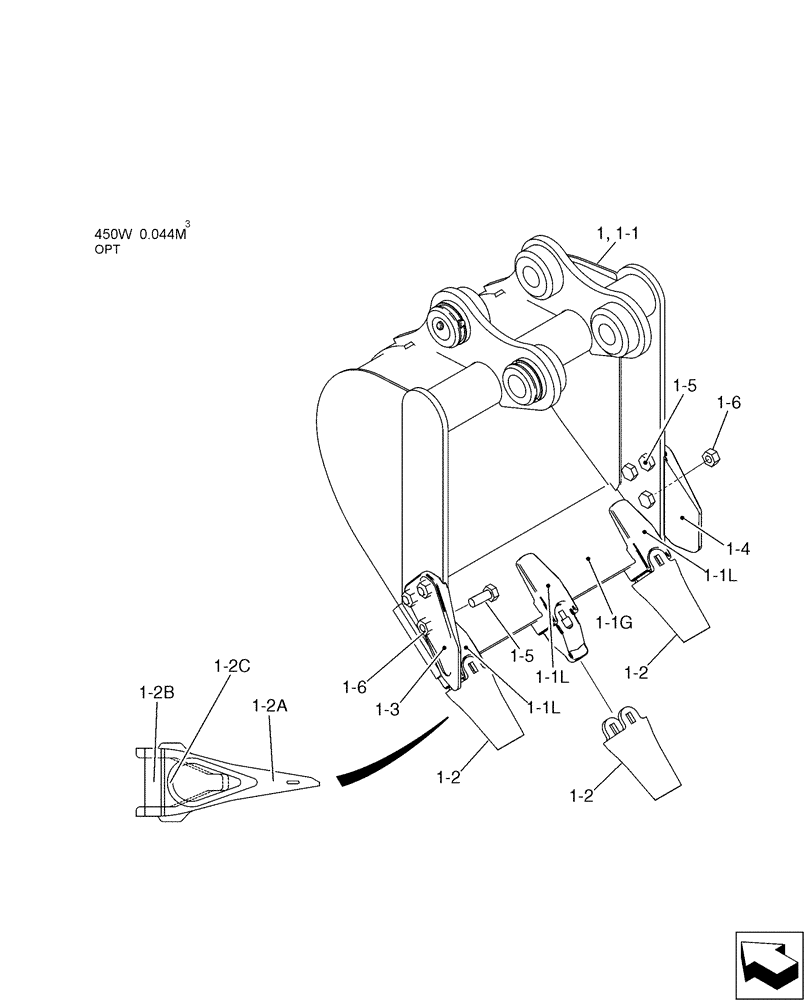

Схема запчастей Case CX17B - (05-008) - BUCKET ASSY 450W - TOOTH 18S (84) - BOOMS, DIPPERS & BUCKETS
1
1-2
1-1l
1-2
1-6
1-6
1-1l
1-2
1-2c
1-2a
1-1
1-4
1-5
1-3
1-1g
1-2b
1-1l
1-5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU61B00065F1

Bucket Assy., 450w (Tooth 18S)

1шт.

1

PU61B00066F1

BUCKET

1шт.

1-1

PU61B00067P1

Bucket

1шт.

1-1g

PU69B01019P1

CUTTING EDGE

1шт.

1-1l

YJ61B01001P1

ADAPTER

3шт.

1-2

YJ69B00002F1

BUCKET TOOTH

Tooth Assy.

3шт.

1-2a

YJ69B00002S001

BUCKET TOOTH

Tooth

1шт.

1-2b

YJ69B00002S002

PIN

1шт.

1-2c

YJ69B00002S003

RUBBER

1шт.

1-3

PU69B00001P1

CUTTER

Side

1шт.

1-4

PU69B00002P1

CUTTER

Side

1шт.

1-5

ZS13C12030

CAPSCREW

6шт.

1-6

ZN13C12010

NUT

6шт.
