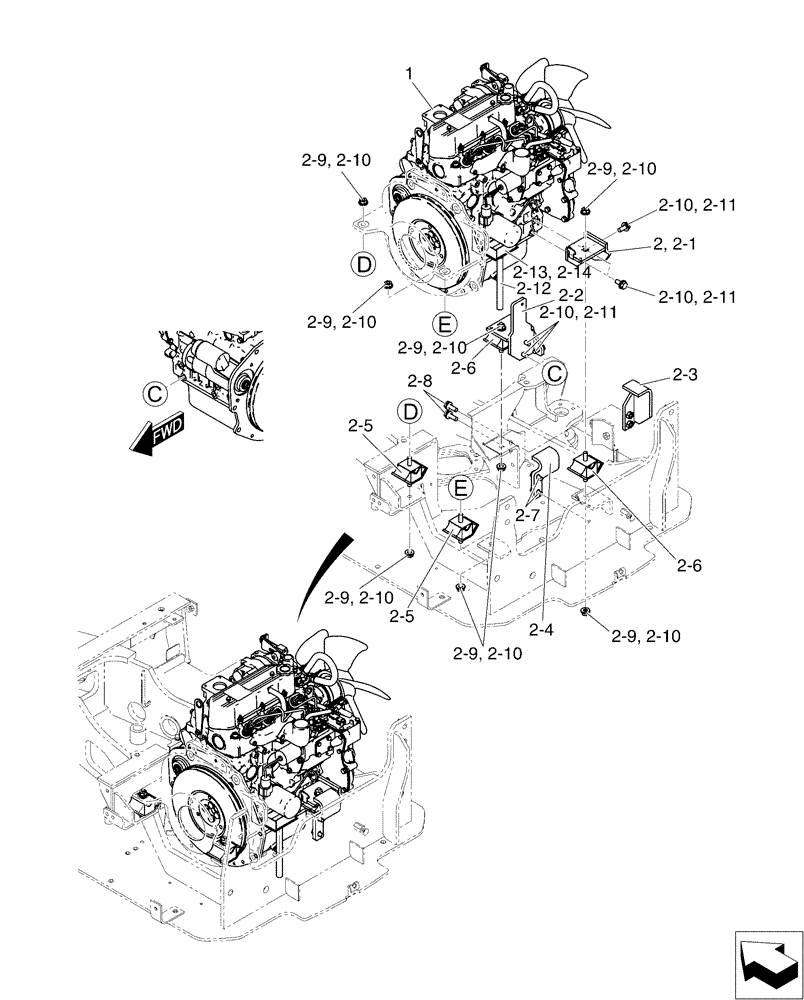

Запчасти Case CX17B (01-008) - ENGINE, MOUNTING - BTW PU09-08001 - PU09-09893 (10) - ENGINE
2-11
2-9
2-9
2-10
2-9
2-13
2-9
2-12
1
2-4
2-8
2-10
2-9
2-6
2-10
2-7
2-11
2-2
2-10
2-9
2-10
2-10
2-10
2-9
2-5
2-10
2-6
2-10
2-3
2-14
2-11
2-10
2
2-5
2-1
№
Артикул
Название
Примечание
Количество
PU02P00019F2
Engine Instal
1шт.
1
PU02P00018F2
ENGINE
1шт.
2
PU02P00015F1
Engine Instal
1шт.
2-1
PU02P01025P1
BRACKET
1шт.
2-2
PU02P01002P1
BRACKET
1шт.
2-3
PU02P01003P1
STOP
1шт.
2-4
PU02P01015P1
STOP
1шт.
2-5
PM02P01037P1
RUBBER MOUNTING
2шт.
2-6
PM02P01038P1
RUBBER MOUNTING
2шт.
2-7
ZM73C10025
BOLT,M10x25mm - Course Thread
Sems
2шт.
2-8
ZM73C10030
BOLT,M10x30mm - Course Thread
Sems
2шт.
2-9
ZN18C10008
NUT
8шт.
2-10
ZW16H10000
WASHER
16шт.
2-11
ZS18F10025
SCREW
Cap
6шт.
2-12
PW02P01047D4
HOSE
1шт.
2-13
PU02P01029P1
BOX
Box
1шт.
2-14
ZS18F10020
BOLT,Hex, M10 x 20mm
Capscrew
2шт.
Выбрано товаров: 17
