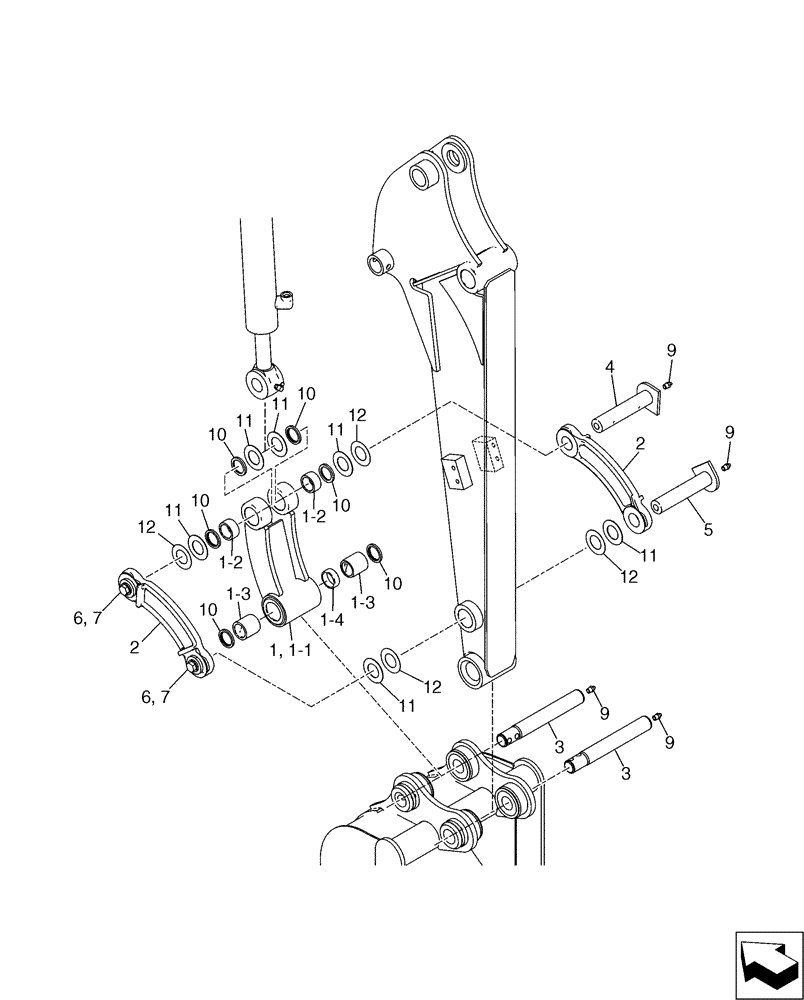

Запчасти Case CX17B (03-015) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS

PU12B00038F1

Arm Group

1шт.

1

PU12B01134F1

LINK

Bucket

1шт.

1-1

PU12B01135P1

Link, Bucket

1шт.

1-2

PU12B01146P1

BUSHING

2шт.

1-3

PE12B01075P1

BUSHING,30mm ID x 40mm OD x 40mm L

2шт.

1-4

PE12B01036D1

COLLAR

, Serial Range: PU09-08001-PU09-09770

1шт.

1-4

PA12B01124P1

COLLAR

, Start Serial: PU09-09771

1шт.

2

PU12B01140P1

LINK

2шт.

3

PE12B01073P2

PIN

2шт.

4

PE12B01083P1

COTTER PIN

1шт.

5

PE12B01085P1

COTTER PIN

1шт.

6

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

2шт.

7

PE12B01057P1

WASHER

2шт.

9

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

4шт.

10

PN54D01001D1

DUST CAP

Seal

6шт.

11

PE12B01048D2

SHIM,1.0mm Thk

(1.2)

6шт.

12

PE12B01087P1

SHIM,0.5mm Thk

4шт.
