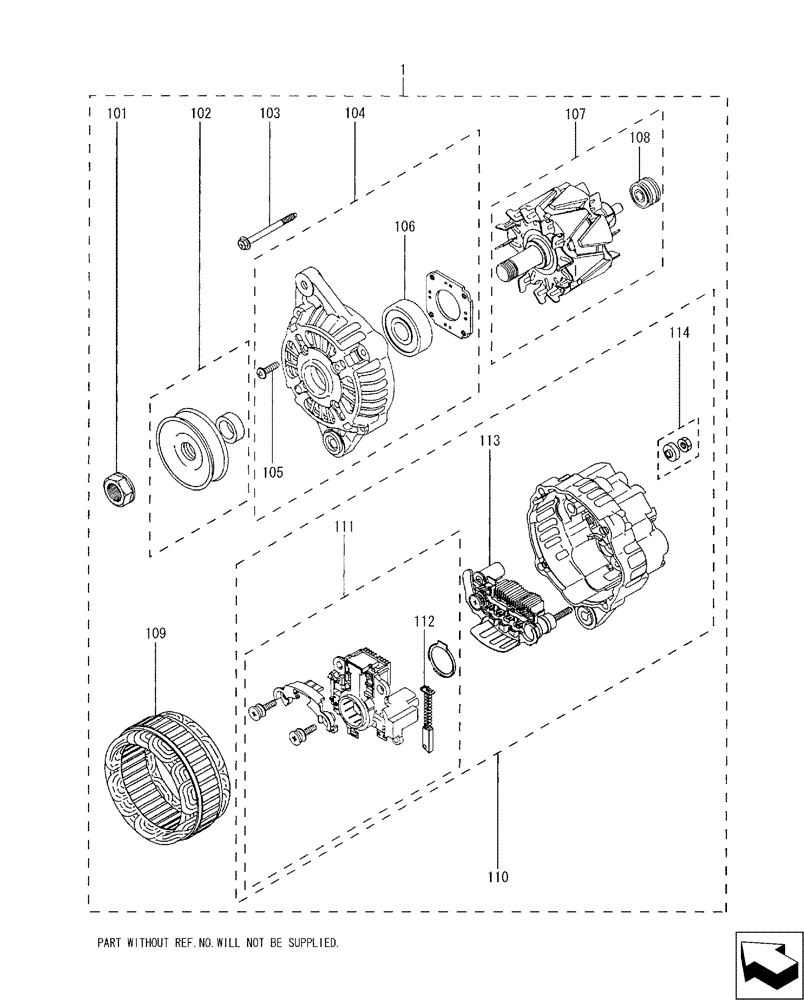

Запчасти Case CX17B (08-028) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

VA30A6800801

ALTERNATOR

A007tA0171B MEC, Includes Ref. 101 - 114

1шт.

101

VAA981X20771

NUT

1шт.

102

VAA628T62170

PULLEY ASSY.

1шт.

103

VAA414X19271

BOLT

Set

1шт.

104

VAA640X67270

BRACKET

Front

1шт.

105

VAA414X21271

SCREW

Set

1шт.

106

VAA930X94570

BEARING

Front

1шт.

107

VAA880X83670

ROTOR

1шт.

108

VAA930P63670

BEARING ASSY

Rear

1шт.

109

VAA383T37470

STARTER MOTOR

1шт.

110

VAA642X33770

BRACKET

Rear

1шт.

111

VAA866X44682

REGULATOR

Set

1шт.

112

VAA647X50170

COMMUTATOR BRUSH

Set

2шт.

113

VAA860X52870

RECTIFIER

1шт.

114

VAA529X05571

NUT

Set

1шт.
