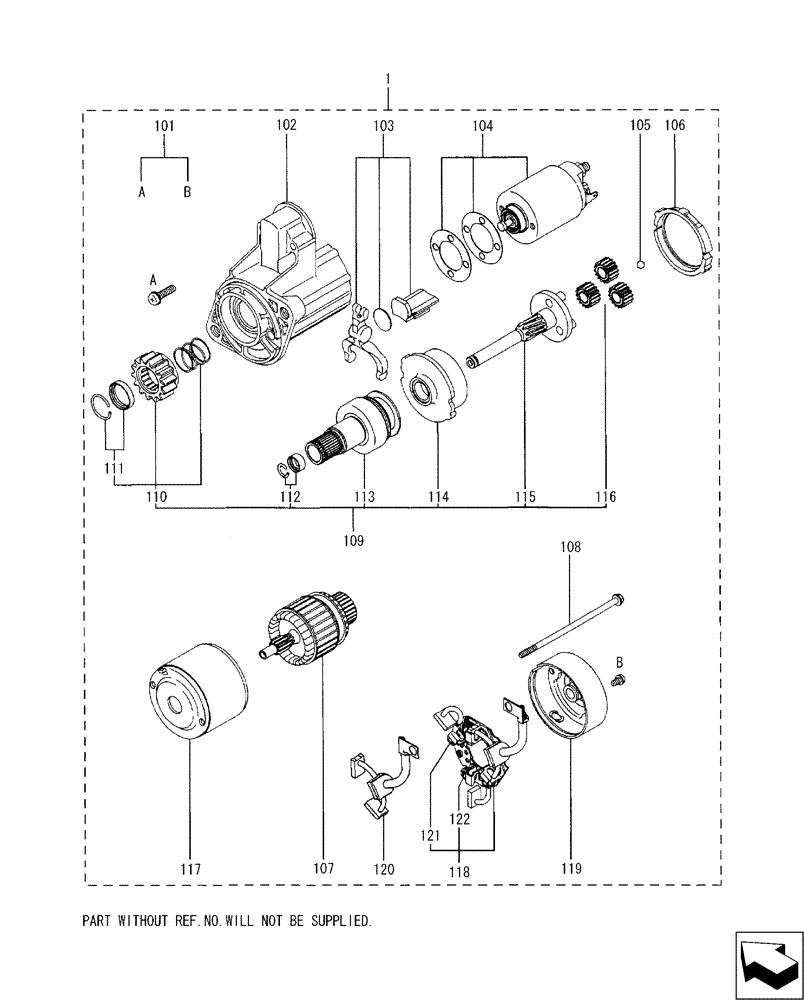

Запчасти Case CX17B (08-024) - STARTER (55) - ELECTRICAL SYSTEMS

1

VA30L6610500

STARTER MOTOR

M001T68381 MEC, Includes Ref. 101 - 122

1шт.

101

VAM414X00474

SCREW

Set

1шт.

102

VAM641XB2272

BRACKET

Front

1шт.

103

VAM864X09773

LEVER

Set

1шт.

104

VAM371X71973

SWITCH ASSY

1шт.

105

VAS409S00008

BALL

1шт.

106

VAM578X31771

PACKING

1шт.

107

VAM106X59371

ARMATURE

1шт.

108

VAM981X73275

BOLT

2шт.

109

VAM357X93871

SHAFT

Clutch

1шт.

110

VAM605X73171

PINION

Set

1шт.

111

VAM385X06171

STOP

Set

1шт.

112

VAM385X07271

STOP

Set

1шт.

113

VAM191X18671

CLUTCH

Over Running

1шт.

114

VAM135X03071

GEAR

Internal

1шт.

115

VAM357X67671

SHAFT

Gear

1шт.

116

VAM230X00471

GEAR

3шт.

117

VAM800X63076

HOUSING

1шт.

118

VAM649X01271

HOLDER

Brush

1шт.

119

VAM642X19373

BRACKET

Rear

1шт.

120

VAM647X00571

COMMUTATOR BRUSH

1шт.

121

VAM391X03271

SPRING

Brush

2шт.

122

VAM391X03371

SPRING

Brush

2шт.
