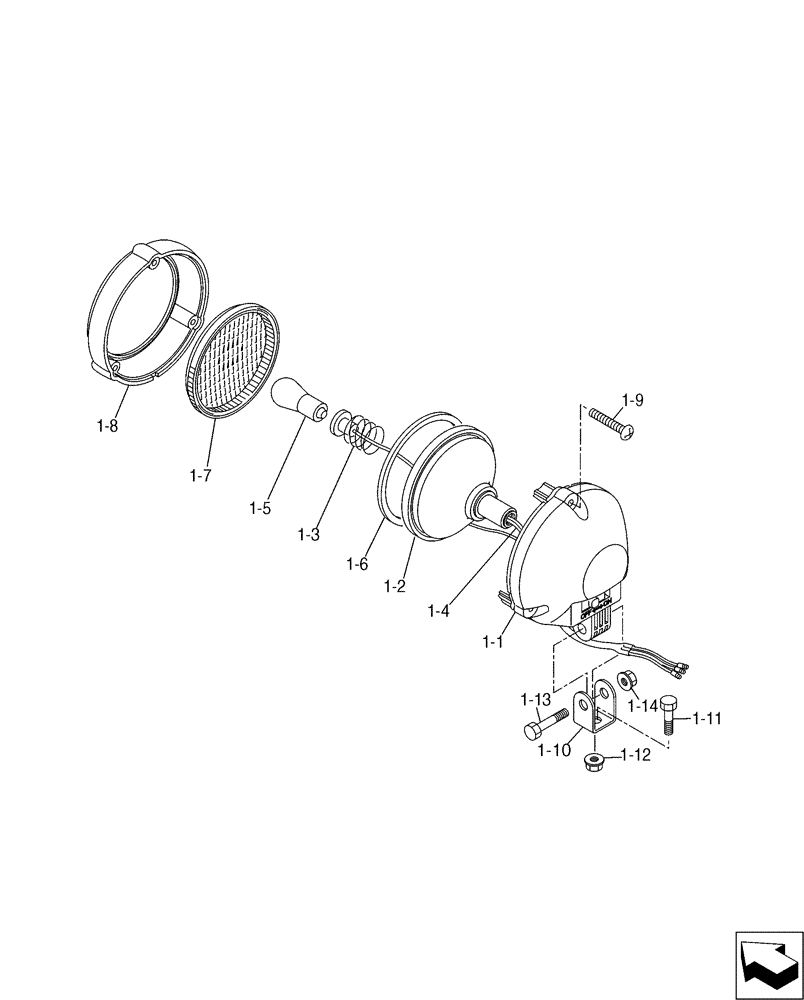

Запчасти Case CX17B (05-006[02]) - LIGHT ASSY (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX17B - (05-006[02]) - LIGHT ASSY (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/960993.png)
1-8
1-3
1-2
1-14
1-7
1-13
1-1
1-12
1-6
1-11
1-4
1-10
1-9
1-5
№
Артикул
Название
Примечание
Количество
PU80S00012F1
HEADLAMP
1шт.
1
PA80S00003F1
LIGHT ASSY.
1шт.
1-1
PA80S00003S001
HOUSING
1шт.
1-2
PA80S00003S002
Reflector
1шт.
1-3
PA80S00003S003
SPRING
Spring
1шт.
1-4
PA80S00003S004
Harness
1шт.
1-5
PA80S00003S005
BULB
1шт.
1-6
PA80S00003S006
Gasket
1шт.
1-7
PA80S00003S007
BULB
Lens
1шт.
1-8
PA80S00003S008
Rim
1шт.
1-9
PA80S00003S009
Screw, Tapping
3шт.
1-10
PA80S00003S010
Stay
1шт.
1-11
PA80S00003S011
Capscrew
1шт.
1-12
PA80S00003S012
NUT
Nut
1шт.
1-13
PA80S00003S013
Capscrew
1шт.
1-14
PA80S00003S014
NUT
Nut
1шт.
Выбрано товаров: 16
