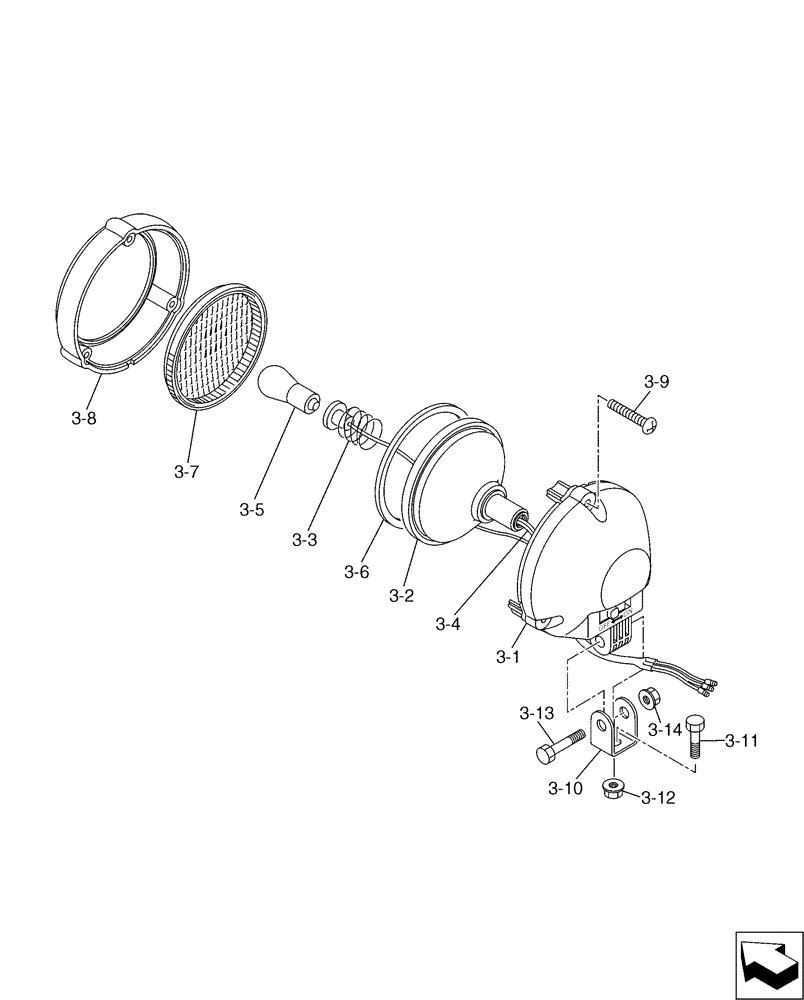

Запчасти Case CX17B (03-012[02]) - LIGHT ASSY (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX17B - (03-012[02]) - LIGHT ASSY (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/1143050.png)
3-8
3-6
3-4
3-3
3-11
3-13
3-1
3-10
3-14
3-2
3-9
3-12
3-5
3-7
№
Артикул
Название
Примечание
Количество
PF80S00003F3
LIGHT
1шт.
3
PA80S00003F1
LIGHT ASSY.
1шт.
3-1
PA80S00003S001
HOUSING
1шт.
3-2
PA80S00003S002
Reflector
1шт.
3-3
PA80S00003S003
SPRING
Spring
1шт.
3-4
PA80S00003S004
Harness
1шт.
3-5
PA80S00003S005
BULB
1шт.
3-6
PA80S00003S006
Gasket
1шт.
3-7
PA80S00003S007
BULB
Lens
1шт.
3-8
PA80S00003S008
Rim
1шт.
3-9
PA80S00003S009
Screw, Tapping
3шт.
3-10
PA80S00003S010
Stay
1шт.
3-11
PA80S00003S011
Capscrew
1шт.
3-12
PA80S00003S012
NUT
Nut
1шт.
3-13
PA80S00003S013
Capscrew
1шт.
3-14
PA80S00003S014
NUT
Nut
1шт.
Выбрано товаров: 16
