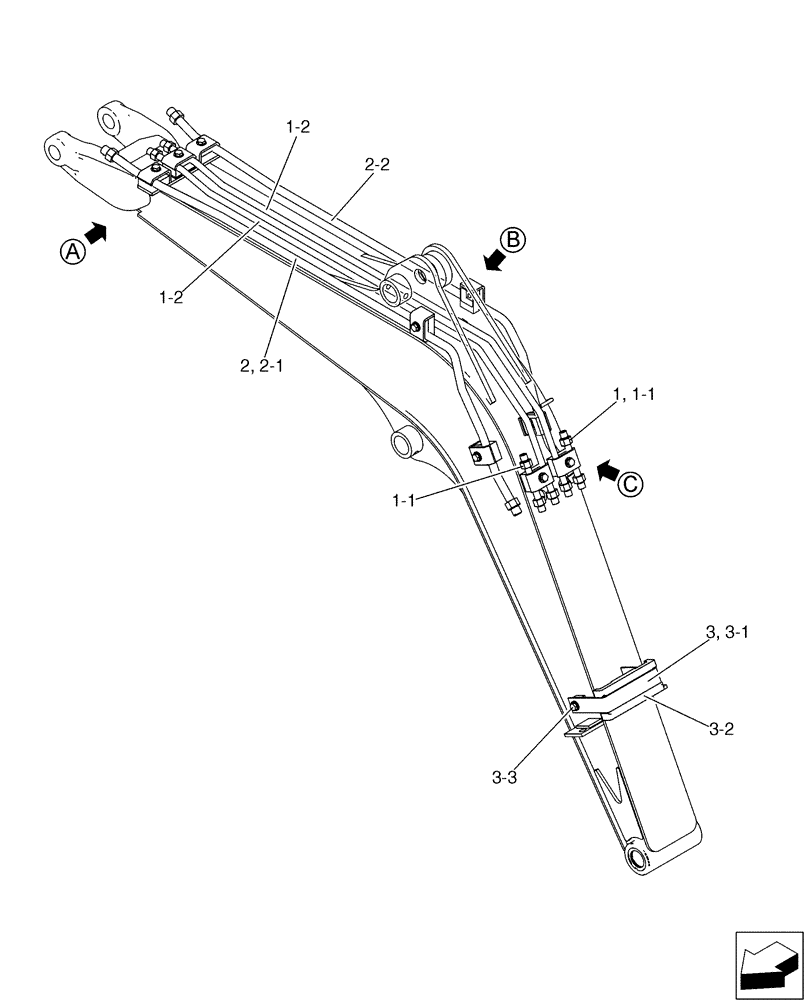

Запчасти Case CX17B (03-007[01]) - HYD LINES, BOOM 1.75M - NIBBLER AND BREAKER (35) - HYDRAULIC SYSTEMS

PU42H00034F1

Hyd. Lines, Boom 1.75m (Nibbler & Breaker)

1шт.

1

PU42H00035F1

Hyd. Lines, Boom

1шт.

1-1

PU42H01085P1

TUBE

2шт.

1-2

PU42H01078P1

TUBE

2шт.

1-3

PU42H01108P1

CLAMP

3шт.

1-4

PU42H01082P1

CLAMP

3шт.

1-5

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

3шт.

1-6

PU42H01107P1

SPACER

3шт.

2

PU42H00036F1

Hyd. Lines, Boom

1шт.

2-1

PU42H01101P1

TUBE

1шт.

2-2

PU42H01102P1

TUBE

1шт.

2-3

PU42H01105P1

BRACKET

1шт.

2-4

PU42H01103P1

CLAMP

6шт.

2-5

PU42H01104P1

CLAMP

6шт.

2-6

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

6шт.

2-7

PU42H01107P1

SPACER

6шт.

3

PU42H00038F1

Hyd. Lines, Boom

1шт.

3-1

PU42H01093P1

COVER

1шт.

3-2

PU42H01094P1

RUBBER JOINT

1шт.

3-3

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.
