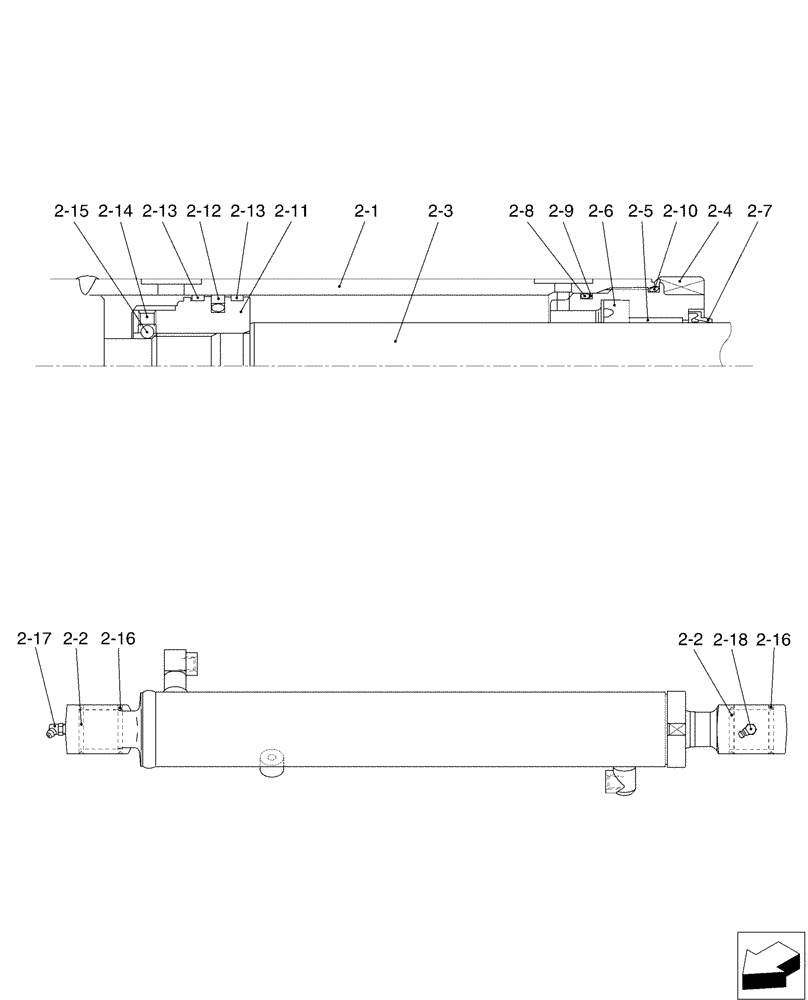

Запчасти Case CX17B (03-005[02]) - CYLINDER INSTAL - ARM (35) - HYDRAULIC SYSTEMS

PU02B00072F1

Cylinder Instal (Arm)

1шт.

2

PU01V00036F1

CYLINDER

Arm

1шт.

2-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

2-2

PV12B01185D3

BUSHING

2шт.

2-3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

2-4

PV01V00045S005

CYLINDER HEAD

, Serial Range: PU09-08001-PU09-09784

1шт.

2-4

PV01V00074S005

CYLINDER HEAD

, Start Serial: PU09-09785

1шт.

2-5

PV01V00045S019

BUSHING

1шт.

2-6

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

1шт.

2-7

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

2-8

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

1шт.

2-9

PV01V00045S010

BACK-UP RING

1шт.

2-10

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

2-11

PV01V00045S012

PISTON

1шт.

2-12

2438U988S16

SEAL

Ring

1шт.

2-13

PV01V00063S014

RING

2шт.

2-14

2438U988S18

SET SCREW

1шт.

2-15

2438U988S19

BALL

1шт.

2-16

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

Seal

4шт.

2-17

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

, Serial Range: PU09-08001-PU09-09784

1шт.

2-17

PR01V00027S023

LUBE NIPPLE

, Start Serial: PU09-09785

1шт.

2-18

ZG91U02000

LUBE NIPPLE

, Serial Range: PU09-08001-PU09-09784

1шт.

2-18

PR01V00029S023

LUBE NIPPLE

, Start Serial: PU09-09785

1шт.

PU01V00036R100

TUBE

Repair Kit, Includes Ref. 2-1(1), 2-2(1), 2-16(2)

1шт.

PU01V00036R200

ROD

Repair Kit, Includes Ref. 2-2,(1) 2-6(1), 2-16(2)

1шт.

PV01V00045R300

REPAIR KIT

Includes Ref. 2-6(1), 2-7(1), 2-8(1), 2-9(1), 2-10(1), 2-12(1), 2-13(2)

1шт.
