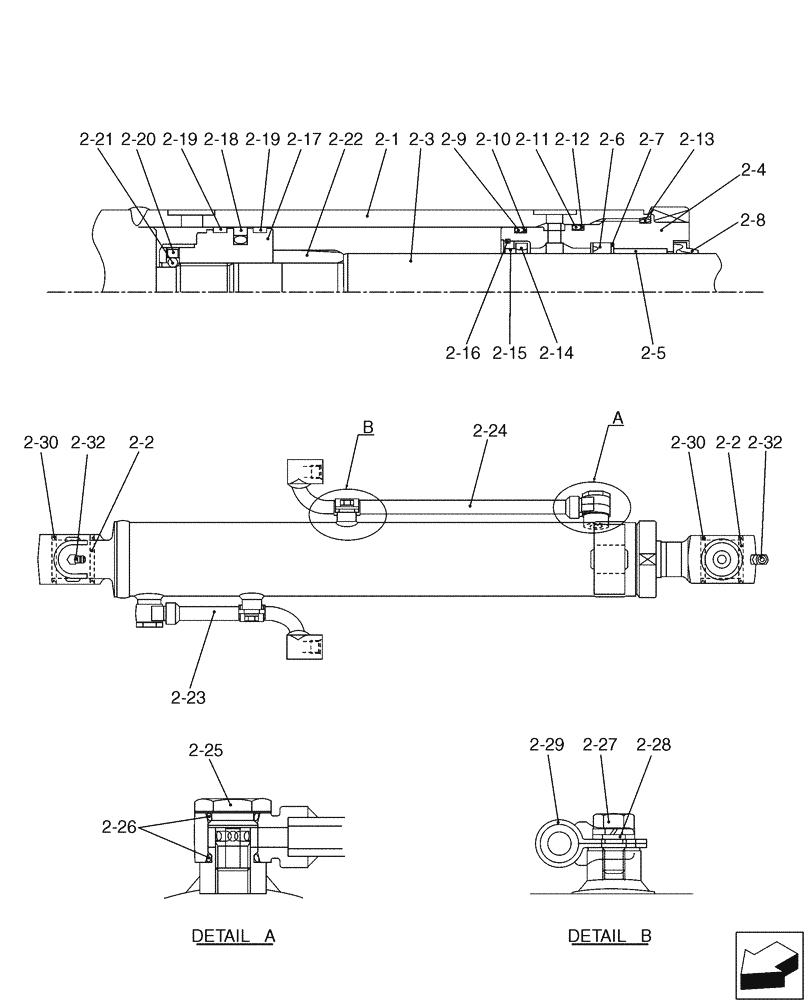

Запчасти Case CX17B (03-004[02]) - CYLINDER INSTAL - BOOM (35) - HYDRAULIC SYSTEMS

PU02B00077F1

Cylinder Instal (Boom)

1шт.

2

PU01V00044F1

CYLINDER

Boom

1шт.

2-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

2-2

PV12B01185D3

BUSHING

2шт.

2-3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

2-4

PU01V00024S004

CYLINDER

Head

1шт.

2-5

PV01V00045S019

BUSHING

1шт.

2-6

PM01V00008S005

GASKET

Ring

1шт.

2-7

PM01V00050S012

BACK-UP RING

1шт.

2-8

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

2-9

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

1шт.

2-10

PV01V00023S008

RING

Back Up

1шт.

2-11

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

1шт.

2-12

PV01V00045S010

BACK-UP RING

1шт.

2-13

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

2-14

PM01V00007S014

RING

1шт.

2-15

PM01V00007S015

SPACER

1шт.

2-16

PM01V00007S016

STOP

1шт.

2-17

PV01V00045S012

PISTON

1шт.

2-18

2438U988S16

SEAL

Ring

1шт.

2-19

PV01V00063S014

RING

2шт.

2-20

2438U988S18

SET SCREW

1шт.

2-21

2438U988S19

BALL

1шт.

2-22

PU01V00024S022

BEARING

1шт.

2-23

PU01V00044S023

TUBE

1шт.

2-24

PU01V00044S024

TUBE

1шт.

2-25

PU01V00024S025

PLUG

2шт.

2-26

ZD12P01500

O-RING

4шт.

2-27

PU01V00024S027

BOLT

2шт.

2-28

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

2шт.

2-29

PU01V00024S029

HOLDER

2шт.

2-30

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

Seal

4шт.

2-32

PR01V00027S023

LUBE NIPPLE

Nipple, Grease

2шт.

PU01V00044R100

REPAIR KIT

Includes Ref. 2-1(1), 2-2(1), 2-30(2)

1шт.

PU01V00024R200

ROD

Repair Kit, Includes Ref. 2-2(1), 2-3(1), 2-30(2)

1шт.

PU01V00024R300

SEAL

Repair Kit, Includes Ref. 2-6(1), 2-7(1), 2-8(1), 2-9(1), 2-10(1), 2-11(1), 2-12(1), 2-13(1), 2-18(1), 2-19(2)

1шт.
