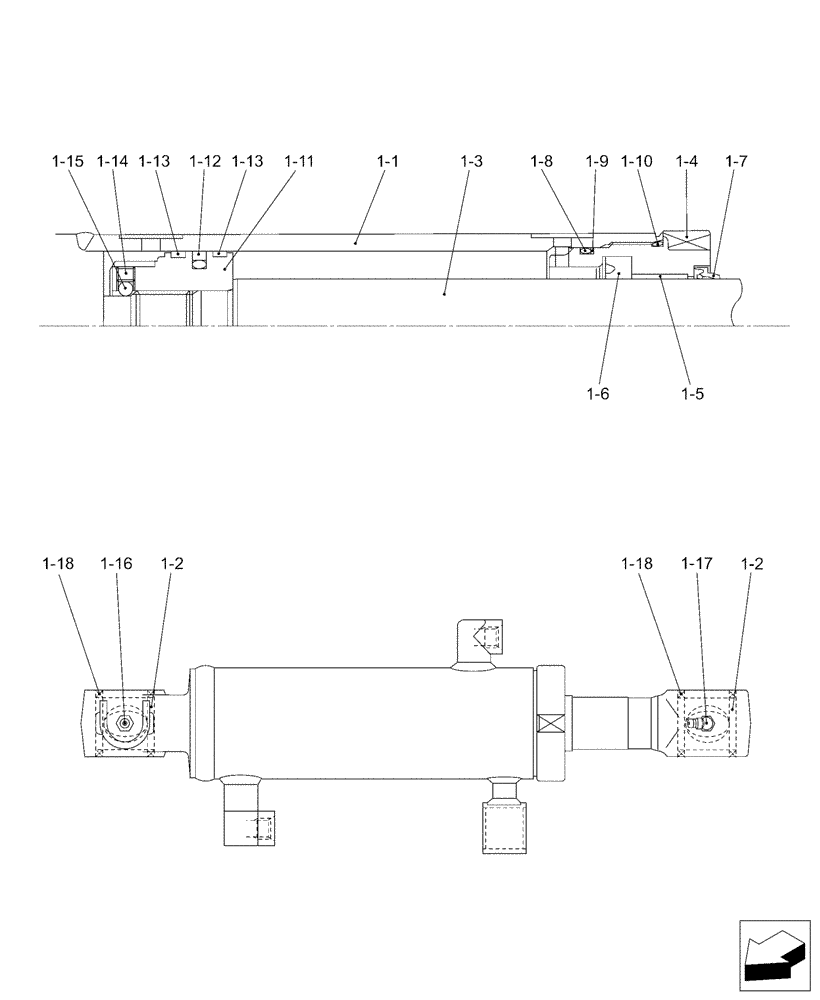

Запчасти Case CX17B (02-017[02]) - CYLINDER INSTAL - DOZER (35) - HYDRAULIC SYSTEMS

PU51B00026F1

Cylinder Instal (Dozer)

1шт.

1

PU01V00029F1

CYLINDER

Dozer

1шт.

1-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

1-2

PN01V00003S002

BUSHING

2шт.

1-3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

1-4

PV01V00045S005

CYLINDER HEAD

1шт.

1-5

PV01V00045S019

BUSHING

1шт.

1-6

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

1шт.

1-7

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

1-8

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

1шт.

1-9

PV01V00045S010

BACK-UP RING

1шт.

1-10

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

1-11

PV01V00045S012

PISTON

1шт.

1-12

2438U988S16

SEAL

Ring

1шт.

1-13

PV01V00063S014

RING

2шт.

1-14

2438U988S18

SET SCREW

1шт.

1-15

2438U988S19

BALL

1шт.

1-16

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

1-17

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

1-18

PN54D01001D1

DUST CAP

Seal

4шт.

PU01V00029R100

TUBE

Repair Kit, Includes Ref. 1-1(1), 1-2(1), 1-18(2)

1шт.

PU01V00029R200

ROD

Repair Kit, Includes Ref. 1-2(1), 1-3(1), 1-18(2)

1шт.

PV01V00045R300

REPAIR KIT

Includes Ref. 1-6(1), 1-7(1), 1-8(1), 1-9(1), 1-10(1), 1-12(1), 1-13(2)

1шт.
