(02-004[01]) - CYLINDER INSTAL - CRAWLER FRAME WIDTH

Запчасти Case CX17B (02-004[01]) - CYLINDER INSTAL - CRAWLER FRAME WIDTH (35) - HYDRAULIC SYSTEMS

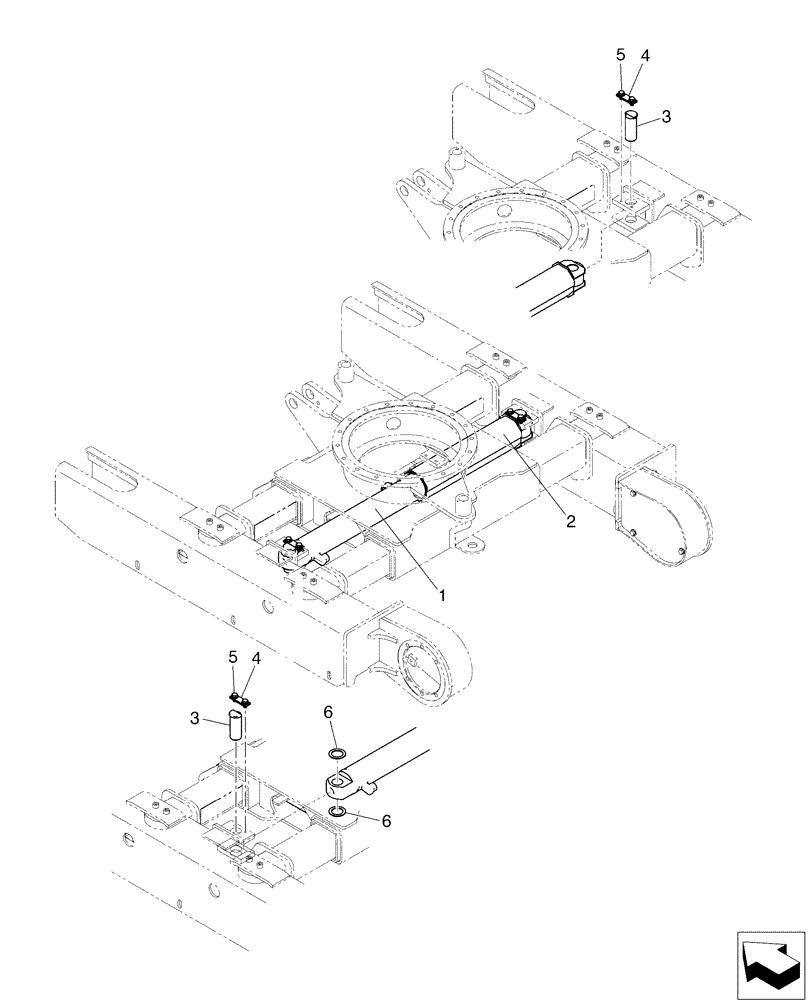

Схема запчастей Case CX17B - (02-004[01]) - CYLINDER INSTAL - CRAWLER FRAME WIDTH (35) - HYDRAULIC SYSTEMS
4
3
2
3
5
6
1
5
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU01V00034F1

Cylinder Instal (Crawler)

1шт.

1

PU01V00030F1

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 330mm Stroke

1шт.

Refer To 02-004(02)

1шт.

2

PU01V01023P1

COVER

1шт.

3

PU01V01027P1

PIN

2шт.

4

PU01V01016P1

PLATE

2шт.

5

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

4шт.

6

PU01V01022P1

SHIM,31mm ID x 45mm OD x 1.6mm Thk

(1.6)

2шт.
