(02-003[03]) - JOINT INSTAL, SWIVEL

Запчасти Case CX17B (02-003[03]) - JOINT INSTAL, SWIVEL (35) - HYDRAULIC SYSTEMS

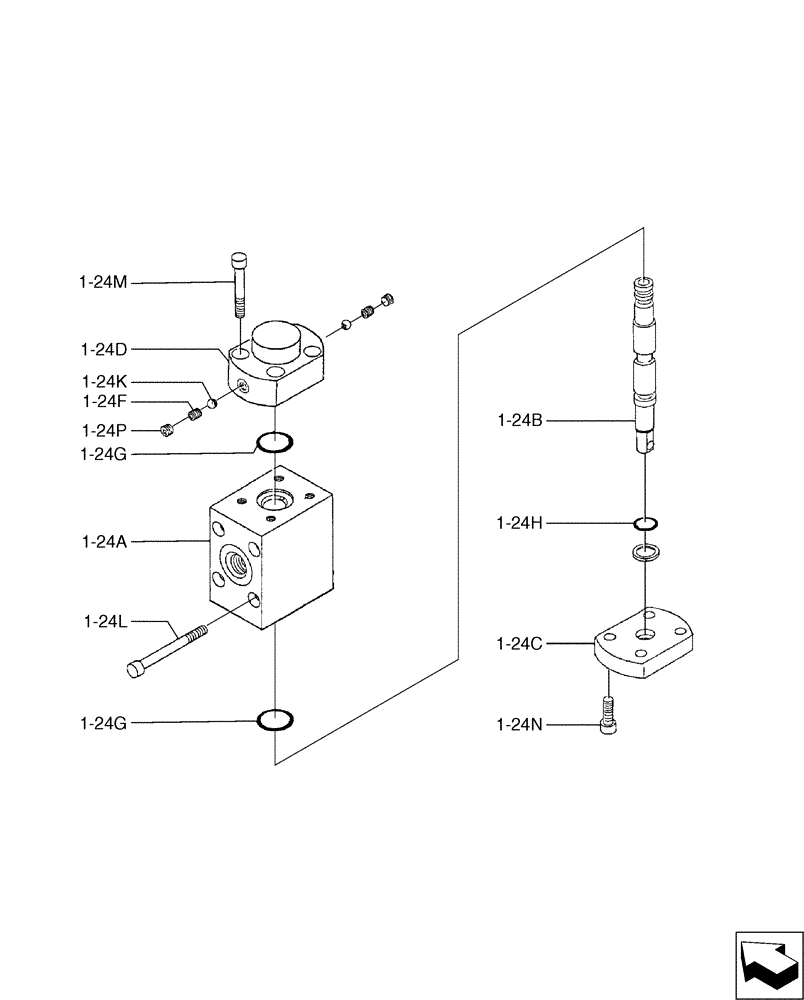

Схема запчастей Case CX17B - (02-003[03]) - JOINT INSTAL, SWIVEL (35) - HYDRAULIC SYSTEMS
1-24g
1-24k
1-24m
1-24d
1-24a
1-24h
1-24c
1-24g
1-24p
1-24f
1-24n
1-24l
1-24b
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU19H00016F1

Joint Instal, Swivel

1шт.

1-24

PA55V01001F2

CONTROL VALVE

1шт.

1-24a

PA55V01001S001

BODY

1шт.

1-24b

PA55V01001S002

SPOOL

1шт.

1-24c

PN55V01001S003

COVER

1шт.

1-24d

PA55V01001S004

COVER

1шт.

1-24f

PN55V01001S005

SPRING

2шт.

1-24g

ZD12P02200

O-RING

2шт.

1-24h

ZD11P01000

O-RING

1шт.

1-24k

PA55V01001S010

BALL

2шт.

1-24l

ZS23C05055

CAPSCREW,Hex Socket Head, M5 x 55mm

4шт.

1-24m

ZS23C05030

CAPSCREW,Hex Socket Head, M5 x 30mm

4шт.

1-24n

ZS23C05016

SCREW,Hex Socket Head, M5 x 16mm

Cap

4шт.

1-24p

PA55V01001S014

PLUG

2шт.
