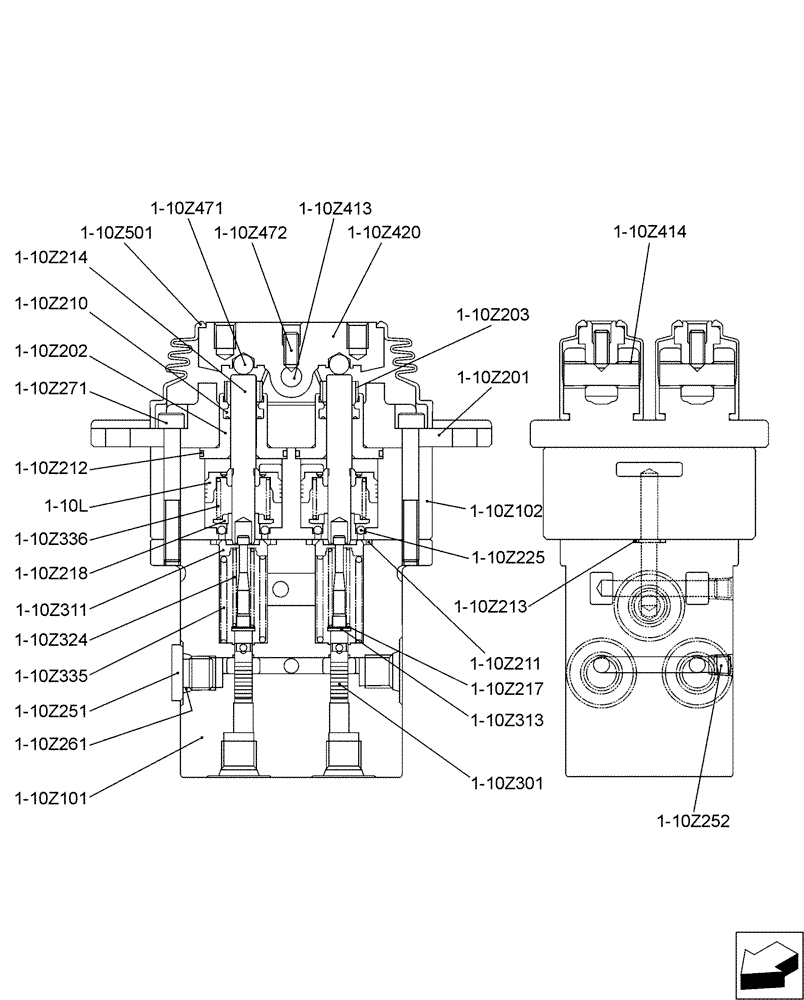

Запчасти Case CX17B (01-039[03]) - CONTROL LINES, PROPEL (35) - HYDRAULIC SYSTEMS

PU62H00010F1

Control Lines, Propel

1шт.

1-10

PM30V00019F3

PILOT VALVE

Pilot

1шт.

1-10l

NSS

NOT SOLD SEPARAT

Piston

4шт.

1-10z101

NSS

NOT SOLD SEPARAT

Body

1шт.

1-10z102

NSS

NOT SOLD SEPARAT

Body

1шт.

1-10z201

PM30V00019S201

COVER

2шт.

1-10z202

PM30V00019S202

PLUG

4шт.

1-10z203

PM30V00019S203

CAP

4шт.

1-10z210

PM30V00019S210

PACKING

4шт.

1-10z211

PM30V00019S211

O-RING

4шт.

1-10z212

YT30V00009S212

O-RING

4шт.

1-10z213

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

1-10z214

EN30V00045S214

ROD

4шт.

1-10z217

EN30V00024S217

SHIM

4шт.

1-10z218

PM30V00019S218

SPRING SEAT

4шт.

1-10z225

2436U625S232

BALL

12шт.

1-10z251

YW30V00001S157

PLUG

3шт.

1-10z252

2441U722S490

PLUG

2шт.

1-10z261

ZD12P01100

O-RING

3шт.

1-10z271

PM30V00019S271

CAPSCREW

4шт.

1-10z301

NSS

NOT SOLD SEPARAT

Spool

4шт.

1-10z311

EN30V00045S311

SEAT

4шт.

1-10z313

EN30V00024S313

WASHER

4шт.

1-10z324

PM30V00019S324

SPRING

Spring

4шт.

1-10z335

PM30V00019S335

SPRING

4шт.

1-10z336

PM30V00019S336

SPRING

4шт.

1-10z413

NSS

NOT SOLD SEPARAT

Shaft, Cam

2шт.

1-10z414

EN30V00045S414

BUSHING

4шт.

1-10z420

NSS

NOT SOLD SEPARAT

Cam

2шт.

1-10z471

NSS

NOT SOLD SEPARAT

Ball

4шт.

1-10z472

EN30V00024S472

SCREW

Set

2шт.

1-10z501

PM30V00019S501

BOOT

Bellows

2шт.

PM30V00019R100

REPAIR KIT

Includes Ref. 1-10Z213(2), 1-10Z210(2), 1-10Z211(2), 1-10Z212(2)

1шт.

PM30V00019R300

REPAIR KIT

Includes Ref. 1-10Z413(1), 1-10Z420(1), 1-10Z212(2), 1-10Z471(2)

1шт.
