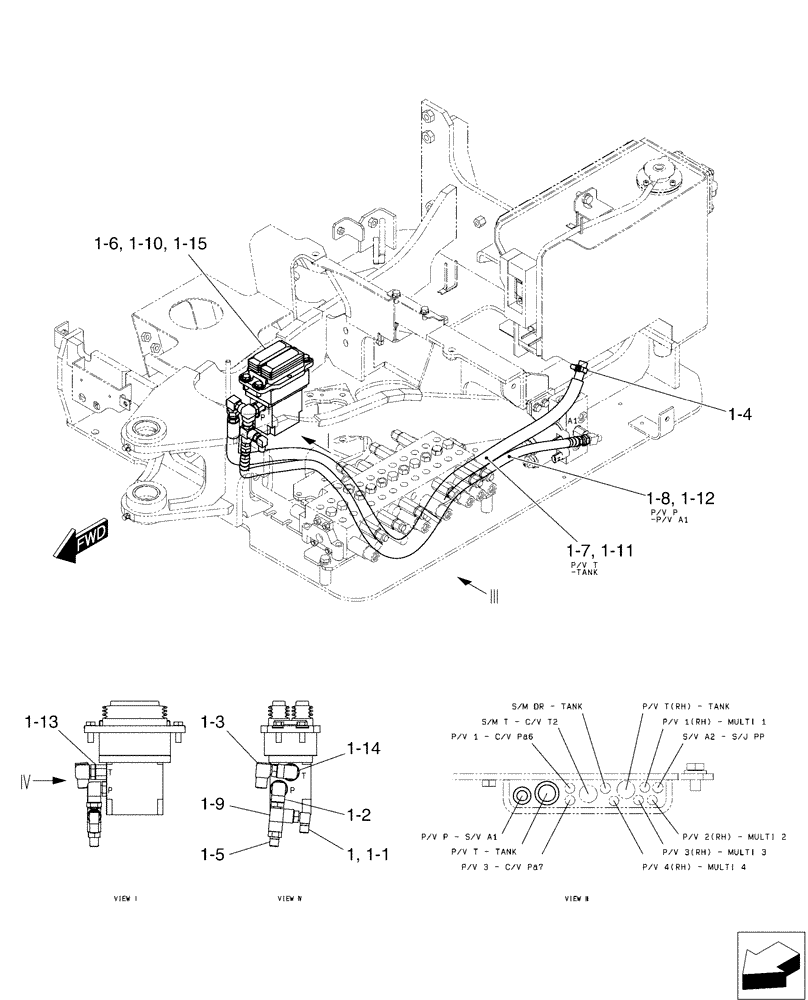

Запчасти Case CX17B (01-039[01]) - CONTROL LINES, PROPEL (35) - HYDRAULIC SYSTEMS

1

PU62H00013F1

Control Lines, Propel

1шт.

1-1

HH35S04004G1

90 ELBOW

1шт.

1-2

PH62H01003P1

ELBOW

1шт.

1-3

HH35S06004G1

90 ELBOW

1шт.

1-4

ZC16X01800

CLIP

1шт.

1-5

HH25S04004G1

HYD CONNECTOR

1шт.

1-6

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

4шт.

1-7

PW68H01023DP

HOSE

1шт.

1-8

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

, Serial Range: PU09-08001-PU09-09352

1шт.

1-8

HX23L04120DX

HOSE ASSY.,6.3mm ID x 1200mm L

, Start Serial: PU09-09353

1шт.

1-9

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

1-10

PM30V00019F3

PILOT VALVE

Pilot

1шт.

Refer To 01-039(03)

1шт.

1-11

2418Z1333D28

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1300mm Length

1шт.

1-12

PW21P01003D8

TUBE

, Serial Range: PU09-08001-PU09-09352

1шт.

1-12

PU13E01002DH

TUBE

, Start Serial: PU09-09353

1шт.

1-13

YX42H01085P1

CONNECTION

1шт.

1-14

2444Z2894

90 ELBOW

Elbow

1шт.

1-15

PW62H01003P1

PLATE

2шт.
