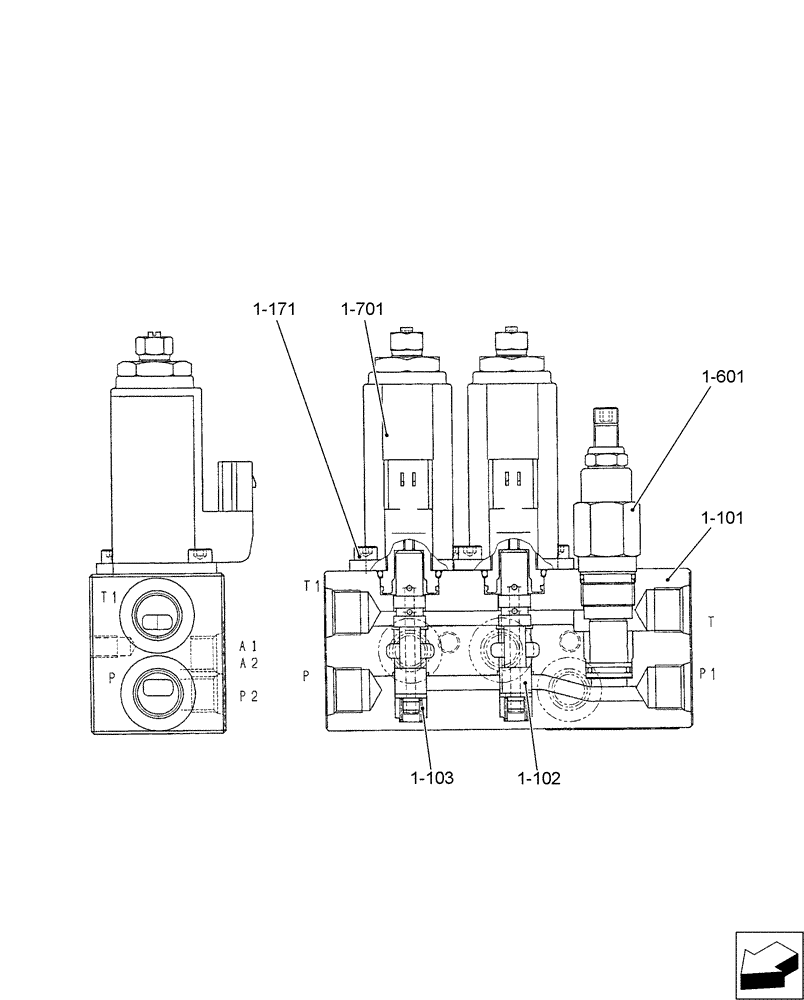

Запчасти Case CX17B (01-038[02]) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

PU64H00029F1

Control Lines, Valve

1шт.

1

PX35V00003F1

VALVE

Assembly, Solenoid (Used for Lever Lock, 2-speed Select)

1шт.

1-101

PX35V00003S101

CASE

Body

1шт.

1-102

PX35V00003S102

SPOOL

2шт.

1-103

2436U1459S5

SPRING

2шт.

1-171

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

4шт.

1-601

YR22V00001F1

HYDRAULIC VALVE

Relief

1шт.

1-701

PX35V00003S701

SOLENOID

2шт.
