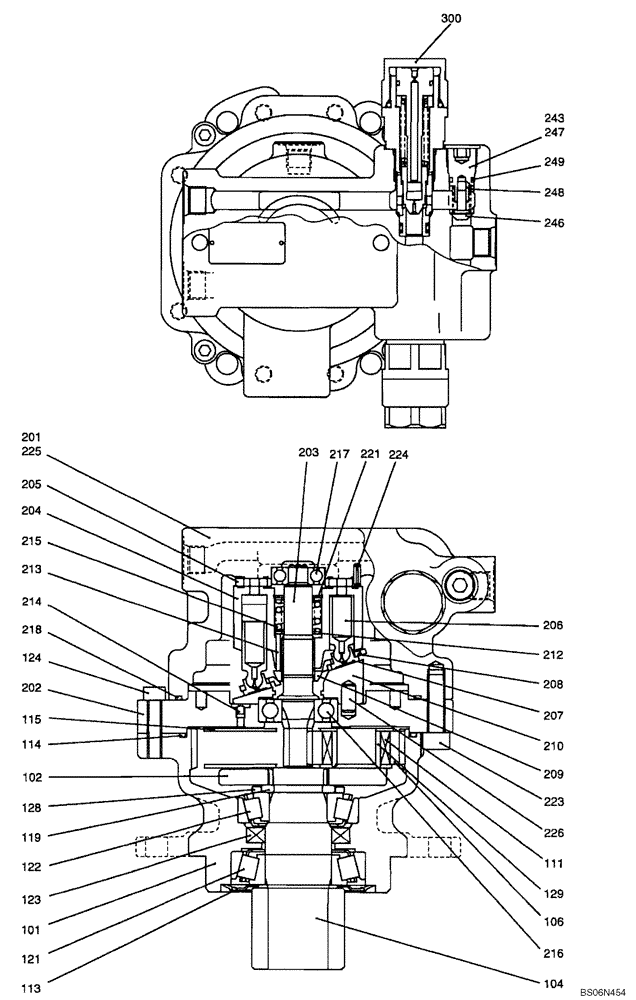

Запчасти Case CX17B (08-018[00]) - MOTOR ASSY, SWING (PU15V00019F1) (35) - HYDRAULIC SYSTEMS

PU15V00019F1

MOTOR

MOTOR ASSY, SWING (PU15V00019F1)

1шт.

101

NSS

NOT SOLD SEPARAT

BODY, Incl in Kit PU15V00019R400

1шт.

102

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

104

NSS

NOT SOLD SEPARAT

Shaft & Pinion Gear, Incl in kit PU15V00019R400

1шт.

106

NSS

NOT SOLD SEPARAT

GEAR

3шт.

111

NSS

NOT SOLD SEPARAT

NEEDLE

54шт.

113

PU15V00019S113

RING

Ring, Seal, Incl in Kit PU15V00019R400

1шт.

114

ZD12G13500

O-RING,134.40mm ID x 140.60mm OD x 3.10mm

Incl in Kit PU15V00019R400

1шт.

115

PU15V00019S115

PLATE

Plate, Thrust

2шт.

119

NSS

NOT SOLD SEPARAT

COLLAR, Incl in Kit PU15V00019R400

2шт.

121

NSS

NOT SOLD SEPARAT

BEARING, Incl in Kit PU15V00019R400

1шт.

122

NSS

NOT SOLD SEPARAT

BEARING, Incl in Kit PU15V00019R400

1шт.

123

NSS

NOT SOLD SEPARAT

OIL SEAL, Incl in Kit PU15V00019R400

1шт.

124

PU15V00019S124

SCREW

Screw

4шт.

128

PU15V00019S128

RING

Ring, Incl in Kit PU15V00019R400

1шт.

129

NSS

NOT SOLD SEPARAT

RING

3шт.

201

NSS

NOT SOLD SEPARAT

BODY

1шт.

202

NSS

NOT SOLD SEPARAT

PLATE

1шт.

203

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

204

NSS

NOT SOLD SEPARAT

BARREL, CYLINDER

1шт.

205

NSS

NOT SOLD SEPARAT

PLATE, VALVE

1шт.

206

NSS

NOT SOLD SEPARAT

PISTON

9шт.

207

NSS

NOT SOLD SEPARAT

SHOE

9шт.

208

NSS

NOT SOLD SEPARAT

HOLDER, SHOE

1шт.

209

NSS

NOT SOLD SEPARAT

HOLDER, BARREL

1шт.

210

NSS

NOT SOLD SEPARAT

PLATE

1шт.

212

NSS

NOT SOLD SEPARAT

RETAINER

2шт.

213

NSS

NOT SOLD SEPARAT

PIN

3шт.

214

PM15V00008S014

FILTER

2шт.

215

NSS

NOT SOLD SEPARAT

SPRING

1шт.

216

25T817D17

BALL BEARING

Bearing

1шт.

217

PR15V00004S074

BEARING

BALL

1шт.

218

ZD12G14000

O-RING,139.40mm ID x 145.60mm OD x 3.10mm

1шт.

221

ZR26X02800

RING

RETAINING

1шт.

223

ZS23C10035

SCREW,Hex Socket Head, M10 x 35mm

8шт.

224

ZP26D05012

PIN

SPRING

1шт.

225

NSS

NOT SOLD SEPARAT

PIN

1шт.

226

NSS

NOT SOLD SEPARAT

Pin

1шт.

243

NSS

NOT SOLD SEPARAT

VALVE, RELIEF

2шт.

246

NSS

NOT SOLD SEPARAT

VALVE, CHECK

2шт.

247

NSS

NOT SOLD SEPARAT

PLUG

2шт.

248

NSS

NOT SOLD SEPARAT

SPRING

2шт.

249

ZD12P01100

O-RING

2шт.

300

PU22V00001F1

VALVE

VALVE ASSY, RELIEF; See Figure 08-019

2шт.

k

PU15V00019R400

REPAIR KIT

REPAIR KIT; Includes 101x1, 104x1, 113x1, 114x1, 119x2, 121x1, 122x1, 123x1, 128x1

1шт.

k

PU15V00019R410

ZERO DETANT KIT

VALVE KIT REPAIR KIT; Includes 201x1, 217x1, 218x1, 224x1, 246x2, 247x2, 248x2, 249x2

1шт.

k

PU15V00019R420

REPAIR KIT

REPAIR KIT; Includes 204x1, 205x1, 206x9, 207x9, 208x1, 209x1, 212x2, 213x3, 215x1, 221x1

1шт.

k

PU15V00019R430

KIT

REPAIR KIT; Includes 210x1, 226x1

1шт.

k

PU15V00019R440

O-RING KIT

REPAIR KIT; Includes 218x1, 249x2

1шт.

k

PU15V00019R450

CARRIER

REPAIR KIT; Includes 102x1, 106x3, 111x54, 115x2, 129x3

1шт.
