Запчасти Case CX17B (08-007[00]) - VALVE SECTION, CONTROL VALVE - ARM (PU30V00023F1) (35) - HYDRAULIC SYSTEMS

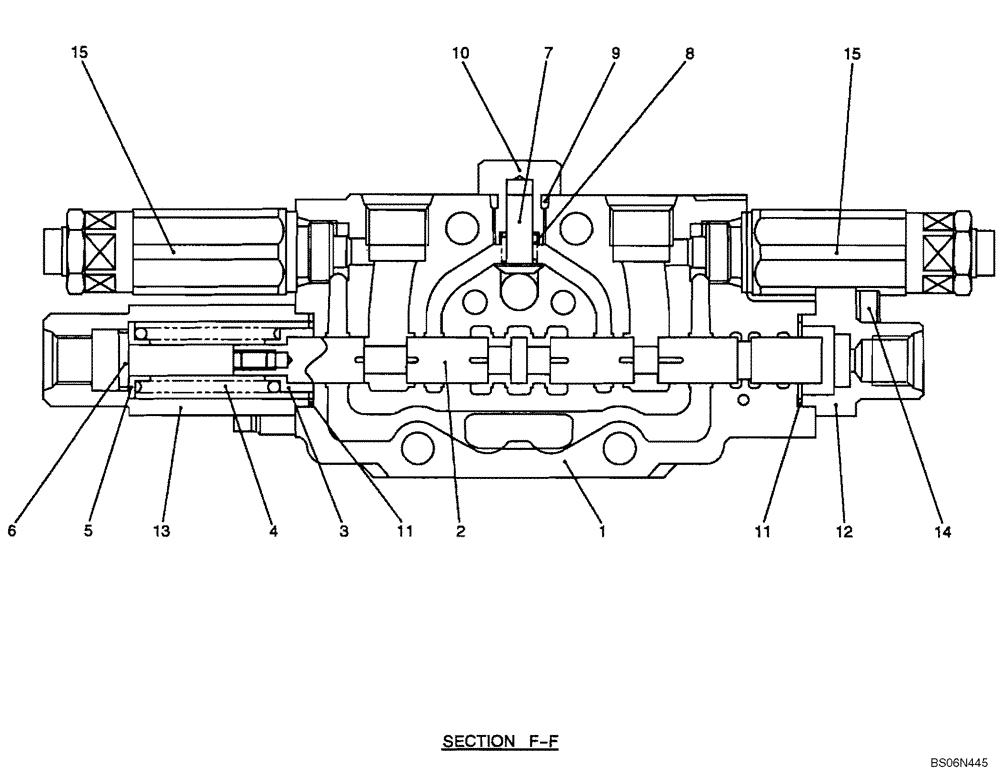

Схема запчастей Case CX17B - (08-007[00]) - VALVE SECTION, CONTROL VALVE - ARM (PU30V00023F1) (35) - HYDRAULIC SYSTEMS
15
5
7
4
9
13
1
6
8
14
11
3
12
10
11
15
2

Артикул

Название

Примечание

Количество

PU30V00023F1

CONTROL VALVE

VALVE ASSY, CONTROL; ARM SECTION (PU30V00023F1)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING, SEAT

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING, SEAT

1шт.

6

NSS

NOT SOLD SEPARAT

END, SPOOL

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

SCREW

4шт.

15

PM22V00005FF

VALVE

VALVE ASSY, OVERLOAD RELIEF; See Figure 08-014

2шт.

k

PU30V00023R100

KIT

REPAIR KIT; Consists of Items 2x1, 3x1, 4x1, 5x1, 6x1

1шт.

Выбрано товаров: 17
