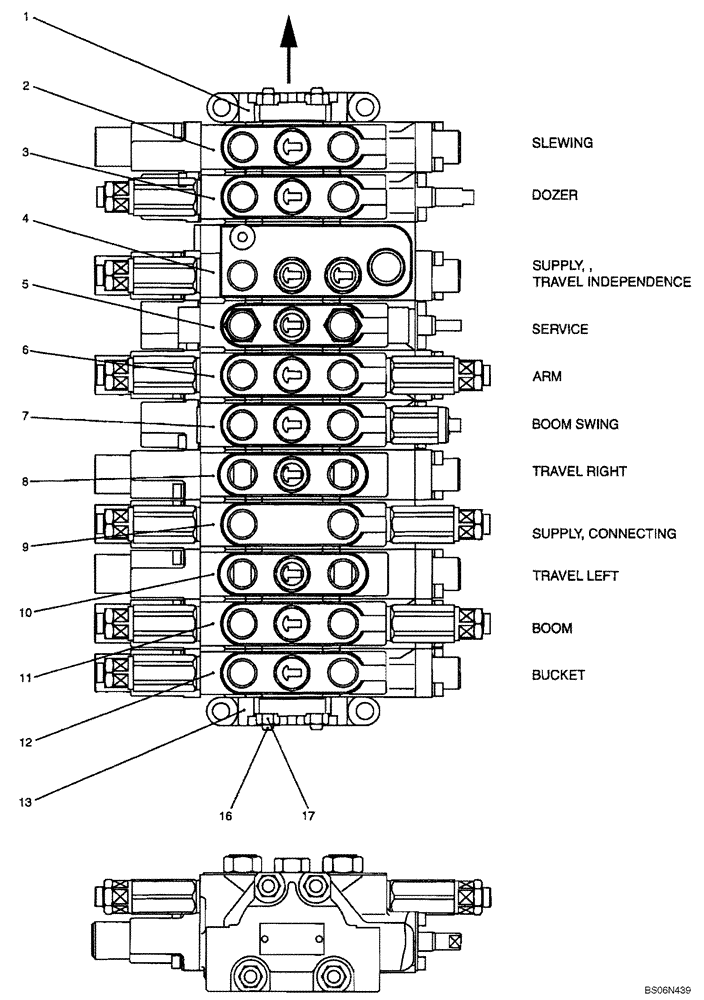

Запчасти Case CX17B (08-001[00]) - VALVE ASSY, CONTROL (PU30V00017F1) (35) - HYDRAULIC SYSTEMS

PU30V00017F1

CONTROL VALVE

VALVE ASSY, CONTROL (PU30V00017F1)

1шт.

1

PU30V00017S001

COVER

Cover

1шт.

2

PU30V00019F1

CONTROL VALVE

Valve Section, Slewing/Swing; See Figure 08-003

1шт.

3

PU30V00020F1

CONTROL VALVE

Valve Section, Dozer; See Figure 08-004

1шт.

4

PU30V00021F1

CONTROL VALVE

Valve Section, Supply, Travel Independence; See Figure 08-005

1шт.

5

PU30V00022F1

CONTROL VALVE

Valve Section, Service; See Figure 08-006

1шт.

6

PU30V00023F1

CONTROL VALVE

Valve Section, Arm; See Figure 08-007

1шт.

7

PU30V00024F1

CONTROL VALVE

Valve Section, Boom Swing; See Figure 08-008

1шт.

8

PU30V00025F1

CONTROL VALVE

Valve Section, Travel Right; See Figure 08-009

1шт.

9

PU30V00026F1

CONTROL VALVE

Valve Section, Supply, Connecting; See Figure 08-010

1шт.

10

PU30V00027F1

CONTROL VALVE

Valve Section, Travel, Left; See Figure 08-011

1шт.

11

PU30V00028F1

CONTROL VALVE

Valve Section, Boom; See Figure 08-012

1шт.

12

PU30V00029F1

CONTROL VALVE

Valve Section, Bucket; See Figure 08-013

1шт.

13

PU30V00017S013

COVER

Cover

1шт.

16

PF30V00004S018

BOLT

Stud, Bolt

4шт.

17

ZN18C08007

NUT

8шт.
