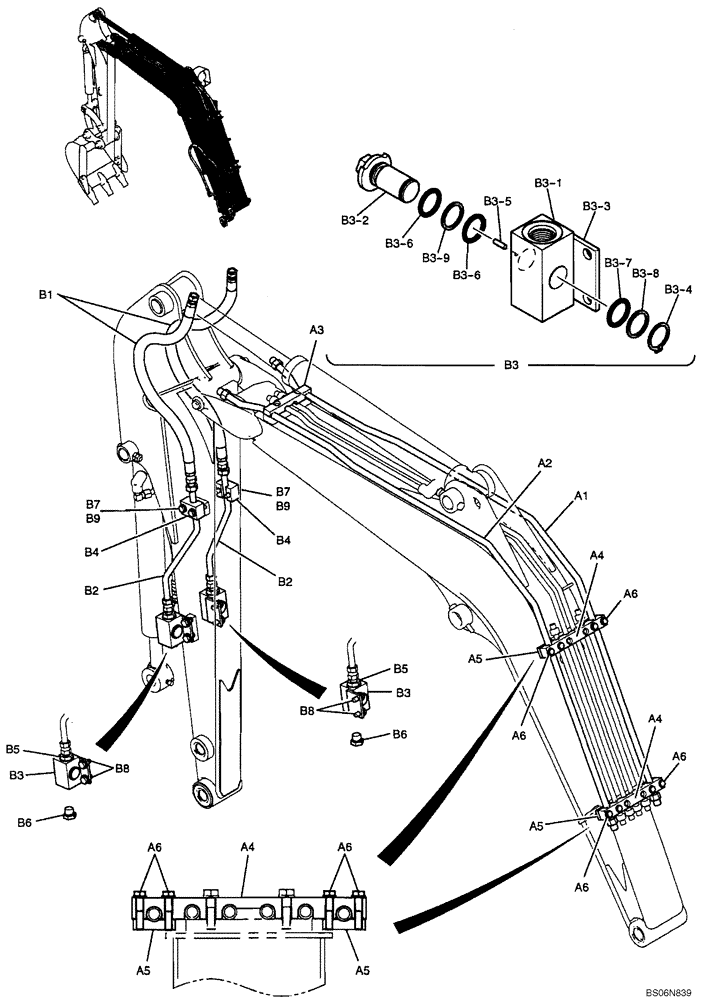

Запчасти Case CX17B (05-005[00]) - HYDRAULIC LINES - BOOM & ARM 1.20M (4 FT) (NIBBLER & BREAKER) (PU42H00020F1) (35) - HYDRAULIC SYSTEMS

HYDRAULIC LINES, BOOM & ARM (1.20M) (NIBBLER & BREAKER)

1шт.

PU42H00020F1

Hydraulic Lines, Boom

1шт.

a1

PU42H01027P1

TUBE

Tube

1шт.

a2

PU42H01028P1

TUBE

Tube

1шт.

a3

PU42H01037P1

CLAMP

Clamp

1шт.

a4

PU42H01038P1

CLAMP

Clamp

2шт.

a5

PF42H01016P1

CLAMP

Clamp

4шт.

a6

ZM73C08035

BOLT,M8x35mm - Course Thread

Bolt

8шт.

PU43H00021F1

HYDRAULIC LINES, ARM (PU43H00021F1)

1шт.

b1

HX55L06054DY

HOSE

2шт.

b2

PU43H01013P1

TUBE

Tube

2шт.

b3

PF25V00001F2

VALVE

Stop

2шт.

b3-1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

b3-2

PF25V00001S002

SHAFT

1шт.

b3-3

PF25V00001S003

PLATE

1шт.

b3-4

ZR16X03000

SNAP RING

Snap

1шт.

b3-5

ZD26D05010

SPRING

Pin, Spring

1шт.

b3-6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

b3-7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

b3-8

ZD75G03000

BACK-UP RING

1шт.

b3-9

ZD75G02500

BACK-UP RING

1шт.

b4

PF43H01005P1

CLAMP

Clamp

2шт.

b5

HH25S06008G1

HYD CONNECTOR

2шт.

b6

ZE72X08000

PLUG

2шт.

b7

ZS18C08040

SCREW,Hex, M8 x 40mm

4шт.

b8

ZM73C10020

BOLT,M10x20mm - Course Thread

Bolt

4шт.

b9

ZW16H08000

WASHER

4шт.
