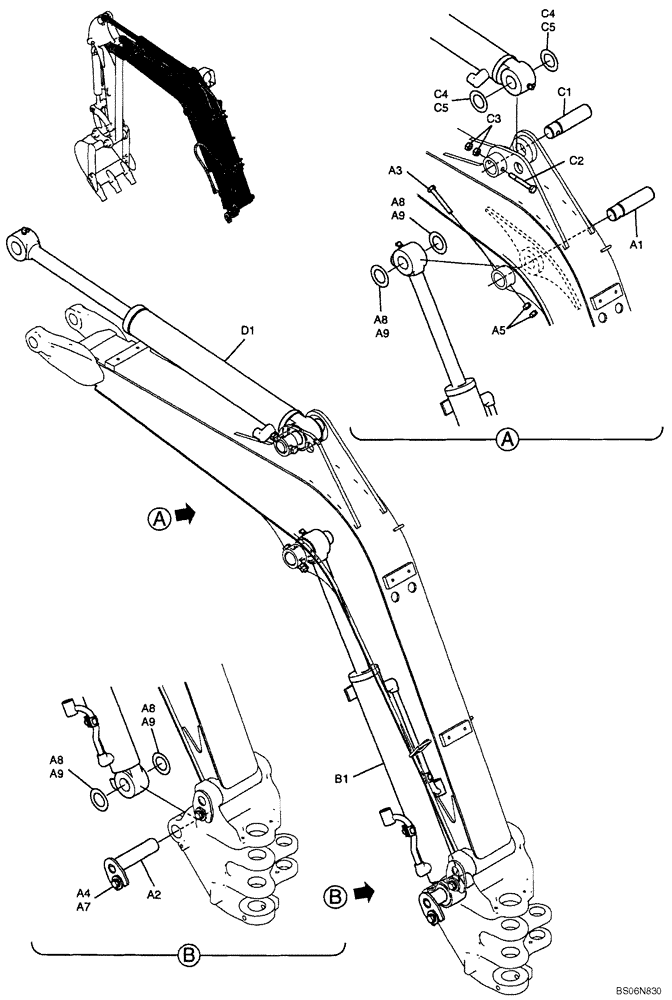

Запчасти Case CX17B (03-004[00]) - CYLINDER INSTAL (BOOM) (PU02B00077F1) (35) - HYDRAULIC SYSTEMS

PU02B00077F1

CYLINDER INSTAL (PU02B00077F1)

1шт.

PU02B00068F1

Cylinder Instal (PU02B00068F1)

1шт.

a1

PU02B01170P1

PIN

Pin

1шт.

a2

PU02B01168P1

PIN

Pin

1шт.

a3

HS18C10075G2

SCREW

1шт.

a4

ZM73C10020

BOLT,M10x20mm - Course Thread

Bolt

1шт.

a5

ZN18C10008

NUT

2шт.

a7

PA12B01031P1

WASHER

1шт.

a8

PR02B01109P1

SHIM,0.5mm Thk

4шт.

a9

PR02B01122D1

SHIM,0.9mm Thk

4шт.

b1

PU01V00024F1

CYLINDER

Cylinder, Boom; See Figure 08-022

1шт.

PU02B00072F1

CYLINDER INSTAL (PU02B00072F1)

1шт.

PU02B00058F1

Cylinder Instal (PU02B00058F1)

1шт.

c1

PF02B01022P1

PIN

Pin

1шт.

c2

HS18C10075G2

SCREW

1шт.

c3

ZN18C10008

NUT

2шт.

c4

PR02B01109P1

SHIM,0.5mm Thk

2шт.

c5

PR02B01122D1

SHIM,0.9mm Thk

2шт.

d1

PU01V00036F1

CYLINDER

Cylinder, Arm; See Figure 08-023

1шт.
