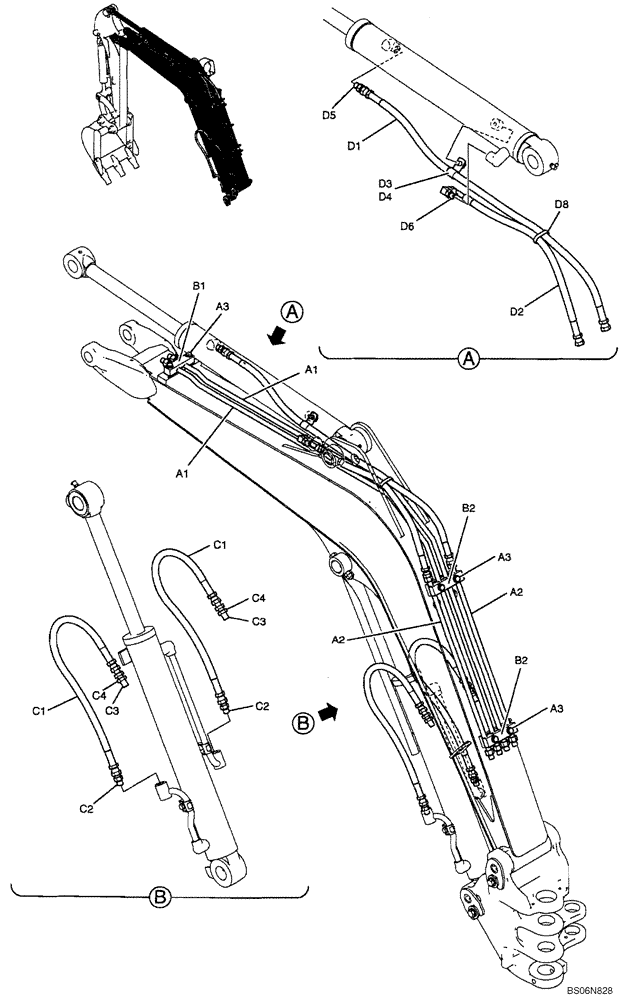

Запчасти Case CX17B (03-002[00]) - HYDRAULIC LINES - BOOM 1.8M (6 FT) & CYLINDER (PU42H00026F1, 21F1, 23F1, 22F1) (35) - HYDRAULIC SYSTEMS

PU42H00026F1

HYDRAULIC LINES, BOOM 1.8M (6 FT) (PU42H00026F1)

1шт.

PU42H00019F1

Hydraulic Lines, Boom

1шт.

a1

PU42H01025P1

TUBE

Tube

2шт.

a2

PU42H01031P1

TUBE

Tube

2шт.

a3

ZM73C08035

BOLT,M8x35mm - Course Thread

Bolt

6шт.

PU42H00021F1

Hydraulic Lines, Boom

1шт.

b1

PU42H01035P1

CLAMP

Clamp

1шт.

b2

PU42H01036P1

CLAMP

Clamp

2шт.

PU42H00023F1

HYDRAULIC LINES, CYLINDER (PU42H00023F1)

1шт.

c1

PU42H01029D1

HOSE

Hose

2шт.

c2

HH25S04004G1

HYD CONNECTOR

2шт.

c3

PA42H01005P1

CONNECTION

Connector

2шт.

c4

PA42H01004P1

NUT

2шт.

PU42H00022F1

HYDRAULIC LINES, CYLINDER (PU42H00022F1)

1шт.

d1

PU42H01029D2

HOSE

Hose

1шт.

d2

PU42H01030D1

HOSE

Hose

1шт.

d3

ZC46X14011

CLIP

1шт.

d4

ZM73C10016

BOLT,M10x16mm - Course Thread

Bolt

1шт.

d5

HH25S04004G1

HYD CONNECTOR

1шт.

d6

HH35S04004G1

90 ELBOW

1шт.

d8

PY01P01043D8

CABLE TIE,102mm L

1шт.
