Запчасти Case CX17B (01-045[00]) - CONTROL LINES PROPEL (TRAVEL ALARM) (PU62H00006F1, 04F1, 07F1) (35) - HYDRAULIC SYSTEMS

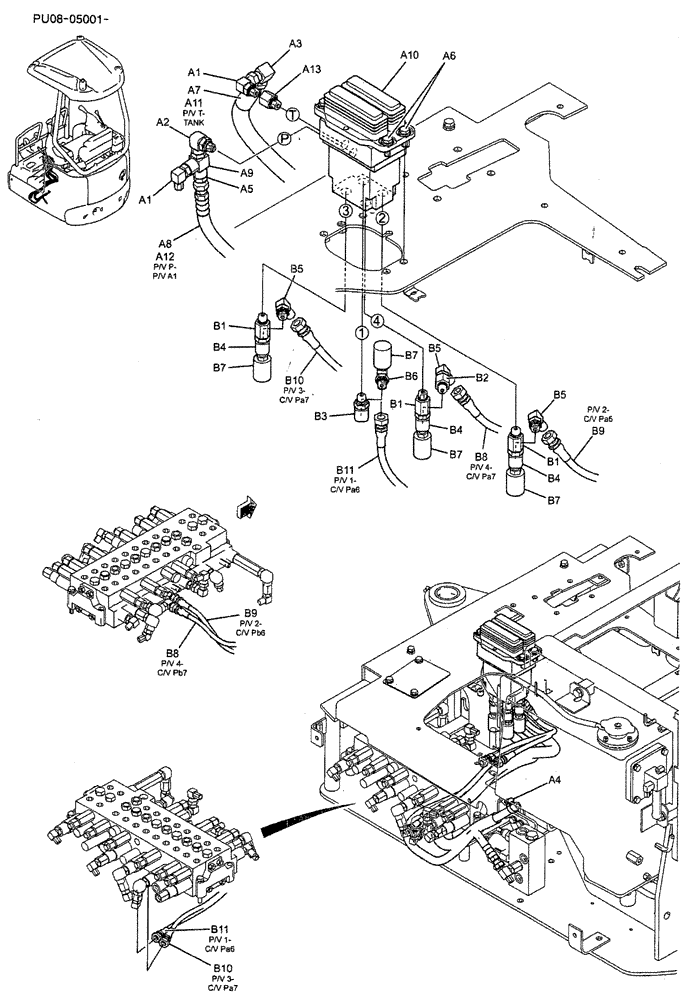

Схема запчастей Case CX17B - (01-045[00]) - CONTROL LINES PROPEL (TRAVEL ALARM) (PU62H00006F1, 04F1, 07F1) (35) - HYDRAULIC SYSTEMS
a7
b11
b4
b1
b1
b4
a13
b9
a5
b7
b5
b1
a1
b4
a11
a4
b8
a6
b3
b7
a12
b7
a10
a2
9
b11
b10
b9
a3
b6
b2
b5
a1
b8
b7
b5
b10
a8

Артикул

Название

Примечание

Количество

Control Lines, Propel, PU62H00006F1, Includes Ref. A1 - A13

1шт.

Control Lines, Propel, PU62H00004F1, Includes Ref. A1 - A13

1шт.

a1

HH35S04004G1

90 ELBOW

2шт.

a2

PH62H01003P1

ELBOW

90° -- (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of PH62H01003P1), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

a3

PU62H01001P1

ELBOW

1шт.

a4

ZC16X01800

CLIP

Clamp, Hose -- Min 12 x Max 22mm

1шт.

a5

HH25S04004G1

HYD CONNECTOR

1/4"PFx1/4"PFx34mm Long (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of HH25S04004G1), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

a6

ZM73C08025

BOLT,M8x25mm - Course Thread

M08x1.25x25mm (Incls. Washer)

4шт.

a7

PW68H01023DD

HOSE,9.5mm ID x 1250mm L

1шт.

a8

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

1шт.

a9

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1/4" PF (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of HH55Q04004G1), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

a10

PM30V00019F3

PILOT VALVE

Pilot

1шт.

See C.P.M.

1шт.

a11

2418Z1333D8

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1100mm Length

1100mm Long (43-19/64 in)

1шт.

a12

PW21P01003D8

TUBE

ID 13.2 x 17.5 x 1050mm Long (41-21/64 in)

1шт.

a13

YX42H01085P1

CONNECTION

1/4"PFx29mm Long (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of YX42H01085P1), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

Control Lines, Propel, PU62H00007F1, Includes Ref. B1 - B11

1шт.

b1

2444Z2525

HYD CONNECTOR

1/4"PFx35mm Long (Incls. O-Ring ZD12P01100)

3шт.

ZD12P01100

O-RING

(Part of 2444Z2525), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

b2

YX42H01085P1

CONNECTION

1/4"PFx29mm Long (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of YX42H01085P1), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

b3

2444Z2894

90 ELBOW

Elbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100)

1шт.

ZD12P01100

O-RING

(Part of 2444Z2894), ID 10.80 ± 0.18 x OD 15mm, Not Shown

1шт.

b4

2444Z4231

ELBOW

3шт.

b5

HH45S04004G1

45 ELBOW

3шт.

b6

PV62H01001P1

ELBOW

1шт.

b7

GB50S00049F2

SWITCH

4шт.

b8

HX23L03036DX

HOSE

360mm Long (14-11/64 in), Serial Range: PU08-05001-PU08-05140

1шт.

b8

PU62H01003D5

HOSE

, Start Serial: PU08-05141

1шт.

b9

HX23L03038DX

HOSE

380mm Long (14-31/32 in), Serial Range: PU08-05001-PU08-05140

1шт.

b9

PU62H01003D4

HOSE

, Start Serial: PU08-05141

1шт.

b10

HX23L03060DX

HOSE

600mm Long (23-5/8 in), Serial Range: PU08-05001-PU08-05140

1шт.

b10

PU62H01003D2

HOSE

, Start Serial: PU08-05141

1шт.

b11

HX23L03064DX

HOSE ASSY.

640mm Long (25-3/16 in), Serial Range: PU08-05001-PU08-05140

1шт.

b11

PU62H01003D1

HOSE

, Start Serial: PU08-05141

1шт.

Выбрано товаров: 39
