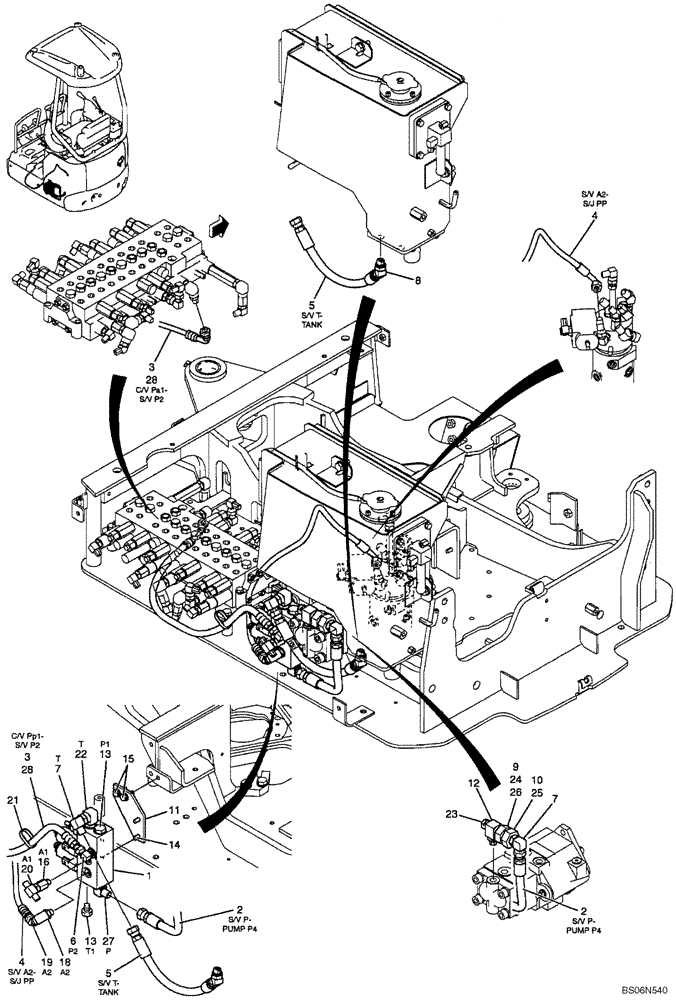

Запчасти Case CX17B (01-033[00]) - HYDRAULICS - CONTROL LINES, VALVE (AT TANK, PUMP, SOLENOID VALVE) (PU64H00023F1) (35) - HYDRAULIC SYSTEMS

PU64H00023F1

CONTROL LINES, VALVE (PU64H00023F1)

1шт.

1

PX35V00003F1

VALVE

Solenoid; See Figure 08-030

1шт.

2

HX23L06034DY

HOSE

Hose

1шт.

3

HX33L04076DX

HOSE

Hose

1шт.

4

HX33L04086DX

HOSE

Hose

1шт.

5

HX22L06034DY

HOSE

Hose

1шт.

6

HH35S04004G1

90 ELBOW

1шт.

7

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

8

HH45S06006G1

45 ELBOW

1шт.

9

PU30P01003P1

ADAPTER

1шт.

10

PU30P01004P1

ADAPTER

1шт.

11

PU64H01028P1

BRACKET

Bracket

1шт.

12

PU64H01030P1

TEE

Tee

1шт.

13

ZE72X06000

PLUG

2шт.

14

ZM73C08020

BOLT,M8x20mm - Course Thread

Bolt

2шт.

15

ZM73C08025

BOLT,M8x25mm - Course Thread

Bolt

2шт.

16

2444Z2525

HYD CONNECTOR

1шт.

18

2444Z2894

90 ELBOW

Elbow

1шт.

19

HH45S04004G1

45 ELBOW

1шт.

20

HH55L04004G2

TEE

1шт.

21

PY01P01043D8

CABLE TIE,102mm L

1шт.

22

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

23

ZE72X04000

PLUG

1шт.

24

PU35V01001P1

FILTER

Oil Seal

1шт.

25

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.

26

ZD12P01400

O-RING

1шт.

27

HH35S06006G3

ELBOW

Elbow

1шт.

28

2418R676D10

TUBE

Tube

1шт.
