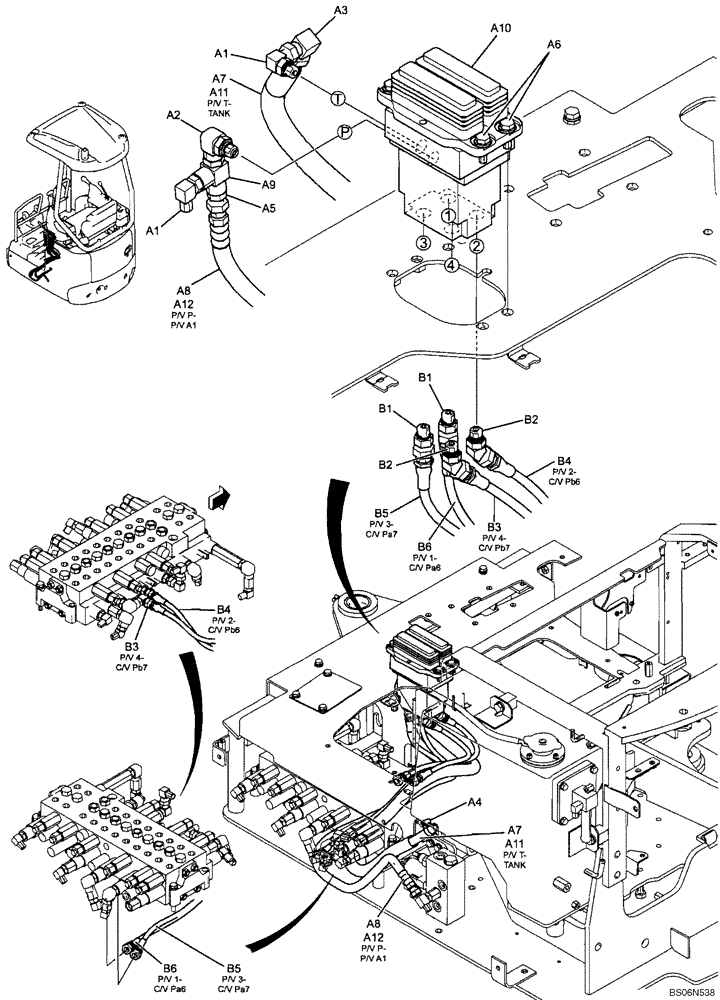

Запчасти Case CX17B (01-032[00]) - HYDRAULICS - CONTROL LINES, PROPEL (PU62H00003F1, 04F1, 05F1) (35) - HYDRAULIC SYSTEMS

PU62H00003F1

CONTROL LINES, PROPEL (PU62H00003F1)

1шт.

PU62H00004F1

CONTROL LINES, PROPEL (PU62H00004F1)

1шт.

a1

HH35S04004G1

90 ELBOW

2шт.

a2

PH62H01003P1

ELBOW

1шт.

a3

PU62H01001P1

ELBOW

Elbow

1шт.

a4

ZC16X01800

CLIP

1шт.

a5

HH25S04004G1

HYD CONNECTOR

1шт.

a6

ZM73C08025

BOLT,M8x25mm - Course Thread

Bolt

4шт.

a7

PW68H01023DD

HOSE,9.5mm ID x 1250mm L

1шт.

a8

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

1шт.

a9

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a10

PM30V00019F3

PILOT VALVE

Valve, Pilot; See Figure 08-029

1шт.

a11

2418Z1333D8

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1100mm Length

1шт.

a12

PW21P01003D8

TUBE

Tube

1шт.

PU62H00005F1

CONTROL LINES, PROPEL (PU62H00005F1)

1шт.

b1

HH25S04004G1

HYD CONNECTOR

2шт.

b2

HH45S04004G1

45 ELBOW

2шт.

b3

HX23L03036DX

HOSE

1шт.

b4

HX23L03038DX

HOSE

Hose

1шт.

b5

HX23L03060DX

HOSE

Hose

1шт.

b6

HX23L03064DX

HOSE ASSY.

1шт.
