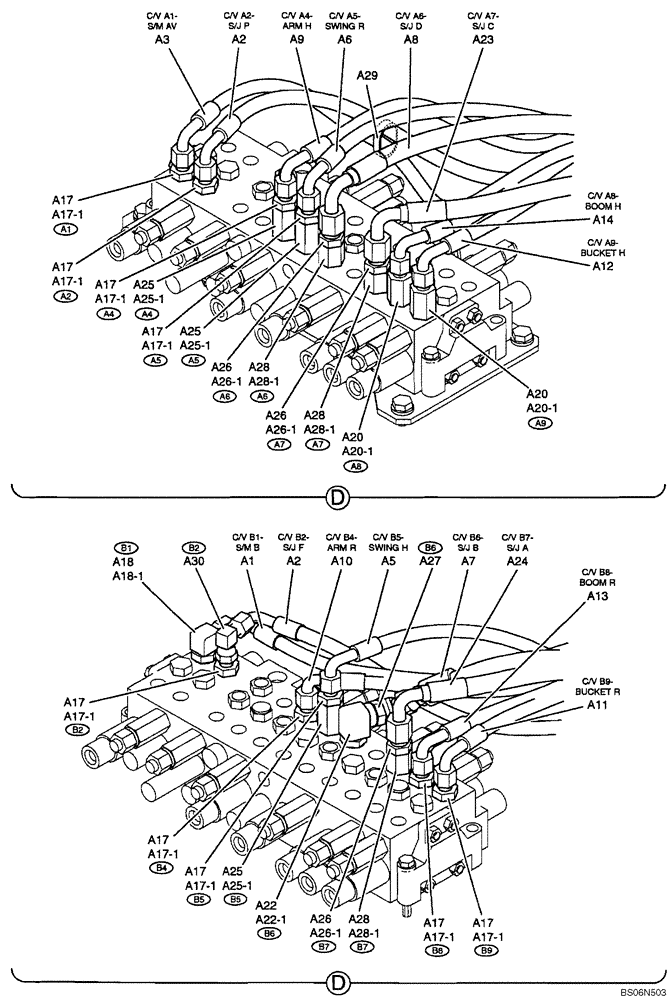

Запчасти Case CX17B (01-019[01]) - HYDRAULICS - UPPER / AT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

PU03H00016F1

HYDRAULIC LINES, UPPER (PU03H00016F1)

1шт.

a1

HX35L04046DX

HOSE

Hose

1шт.

a2

HX35L04060DX

HOSE

Hose

2шт.

a3

HX35L04062DX

HOSE

Hose

1шт.

a5

HX35L04080DX

HOSE

Hose

1шт.

a6

HX35L04078DX

HOSE

Hose

1шт.

a7

HX25L06046DY

HOSE ASSY.

1шт.

a8

HX35L06056DX

HOSE

Hose

1шт.

a9

PU03H01137P1

HOSE

Hose

1шт.

a10

PU03H01138P1

HOSE

Hose

1шт.

a11

PU03H01139P1

HOSE

Hose

1шт.

a12

PU03H01144P1

HOSE

Hose

1шт.

a13

PU03H01141P1

HOSE

Hose

1шт.

a14

PU03H01145P1

HOSE

Hose

1шт.

a17

HH25S04006G1

90 ELBOW

9шт.

a17-1

ZD12P01400

O-RING

9шт.

a18

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

a18-1

ZD12P01400

O-RING

1шт.

a20

PF03H01018P1

WIRE CONNECTOR

Connector

2шт.

a20-1

ZD12P01400

O-RING

2шт.

a22

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

2шт.

a22-1

ZD12P01400

O-RING

2шт.

a23

HX35L06044DY

HOSE

Hose

1шт.

a24

HX35L06036DY

HOSE

Hose

1шт.

a25

HH25R06006GD

WIRE CONNECTOR

Connector

3шт.

a25-1

ZD12P01400

O-RING

3шт.

a26

HH25S06006G1

HYD CONNECTOR

3шт.

a26-1

ZD12P01400

O-RING

3шт.

a27

HH45S06006G1

45 ELBOW

1шт.

a28

2444Z2891

HYD CONNECTOR

3шт.

a28-1

ZD12P01400

O-RING

3шт.

a29

PY01P01043D8

CABLE TIE,102mm L

1шт.

a30

PM12H01001P1

ELBOW

1шт.
