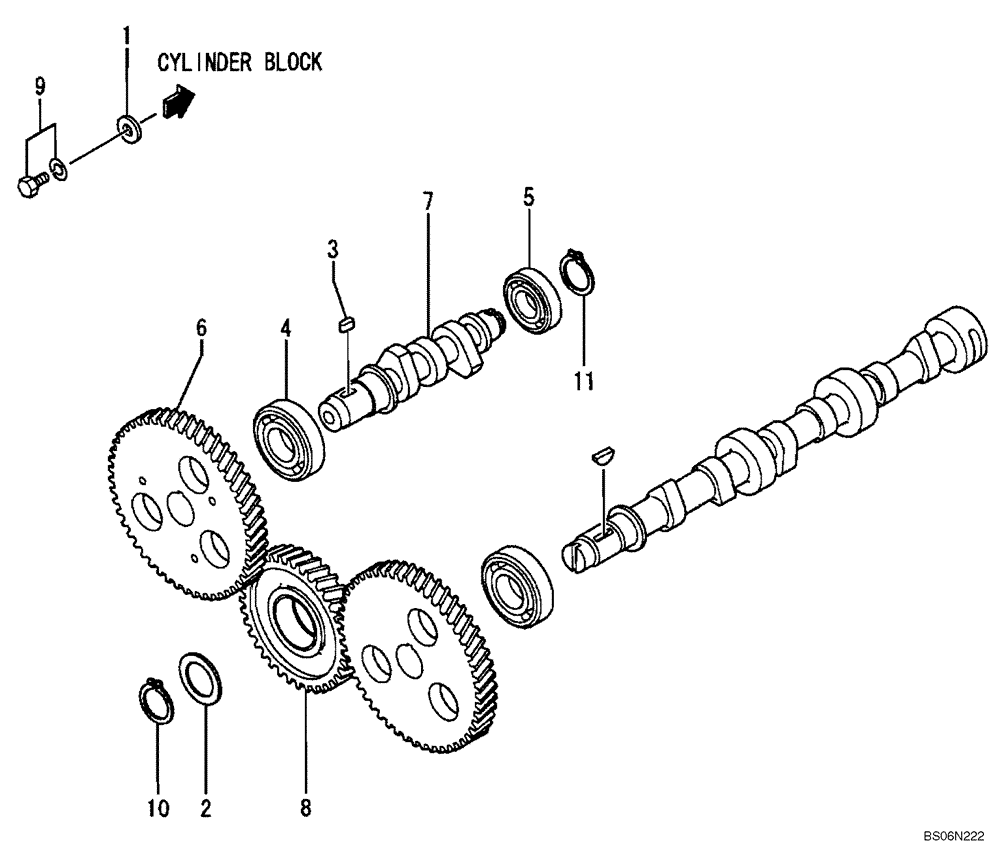

Запчасти Case CX17B (09-024[00]) - FUEL INJECTION PUMP DRIVE (10) - ENGINE

FUEL INJECTION PUMP DRIVE (See Figure 09-004 for Camshaft)

1шт.

1

VAMM432306

WASHER

Washer, Camshaft Stop

1шт.

2

VA30L6501200

PLATE

Plate, Distance

1шт.

3

VAMF476018

KEY

Key, Sunk

1шт.

4

VAMM432105

BALL BEARING

Bearing, Ball

1шт.

5

VAMM432106

BALL BEARING

Bearing, Ball

1шт.

6

VA30L6503300

GEAR

Gear, Fuel Injection Pump; Z=66

1шт.

7

VAMM435144

FUEL SYSTEM INJECTOR

Shaft, Fuel Injection Pump

1шт.

8

VA30L6503010

GEAR

Gear Assy, Idler; Z=50

1шт.

9

VAMF241223

BOLT

Bolt With Washer

1шт.

10

VAMF522017

SNAP RING

Ring, Snap

1шт.

11

VAMF522007

SNAP RING

1шт.
