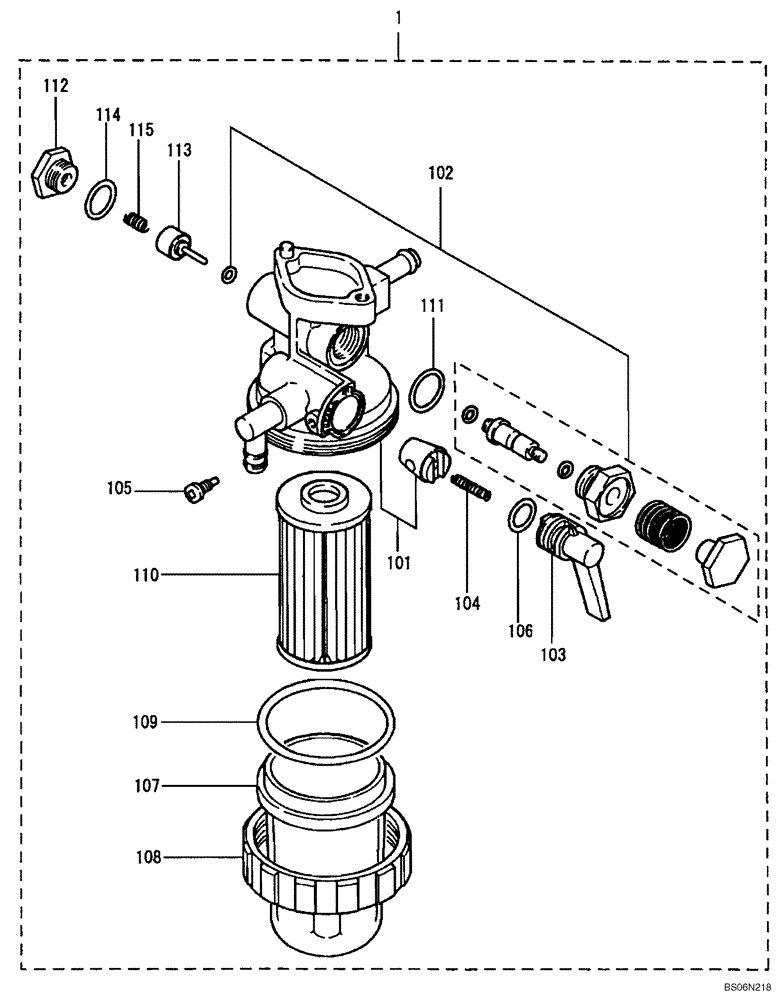

Запчасти Case CX17B (09-020[00]) - FILTER ASSY, FUEL (10) - ENGINE

.

FILTER ASSY, FUEL

1шт.

1

VAMM437020

FILTER ASSY

Filter Assy, Fuel

1шт.

101

VAMM437142

BODY

Head, Filter

1шт.

102

VAMM437143

VALVE

Valve Assy, Air Vent

1шт.

103

VAMM437145

LEVER

Lever

1шт.

104

VAMM404873

SPRING

Spring, Valve

1шт.

105

VAMM404875

SCREW

Screw

1шт.

106

VAMM404874

O-RING

O-Ring, Valve

1шт.

107

VAMM320881

FILTER

Cup, Filter

1шт.

108

VAMM409868

RING NUT

Nut, Ring

1шт.

109

VAMM409869

O-RING

O-Ring, Filter Cup

1шт.

110

VAMM32088601

FILTER

Element, Filter

1шт.

111

VAMM437151

O-RING

O-Ring

1шт.

112

VAMM437152

PLUG

Plug

1шт.

113

VAMM437153

PISTON

Piston

1шт.

114

VAMM437154

O-RING

O-Ring

1шт.

115

VAMM437155

SPRING

Spring

1шт.
