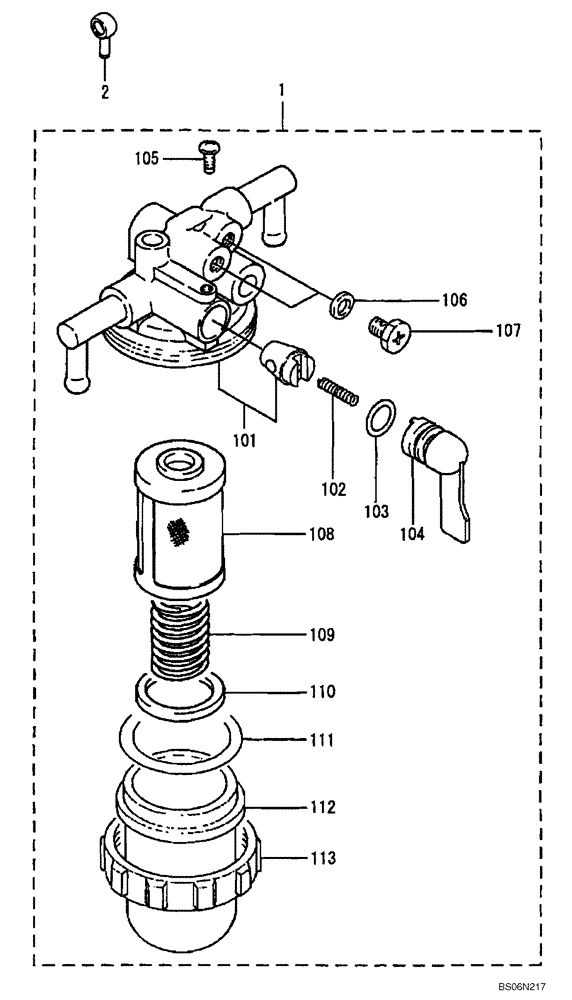

Запчасти Case CX17B (09-019[00]) - FILTER ASSY, WATER SEDIMENT (10) - ENGINE

FILTER ASSY, WATER SEDIMENT

1шт.

1

VAMM130552

FILTER

Filter Assy, Sediment, Water

1шт.

101

VAMM435746

BODY

Head

1шт.

102

VAMM404873

SPRING

Spring, Valve

1шт.

103

VAMM404874

O-RING

O-Ring, Valve

1шт.

104

VAMM434146

LEVER

1шт.

105

VAMM404875

SCREW

Screw

1шт.

106

VAMM404884

PACKING

Washer, Packing

2шт.

107

VAMM404880

SCREW

Air Vent

2шт.

108

VAMM434147

FILTER

Element, Filter

1шт.

109

VAMM434148

SPRING

Element

1шт.

110

VAMM330940

RING

Float, Ring

1шт.

111

VAMM409869

O-RING

O-Ring, Filler Cup

1шт.

112

VAMM320881

FILTER

Cup, Filter

1шт.

113

VAMM409868

RING NUT

Nut, Ring

1шт.

2

VAMM409125

JOINTER

Joint, Union

2шт.
