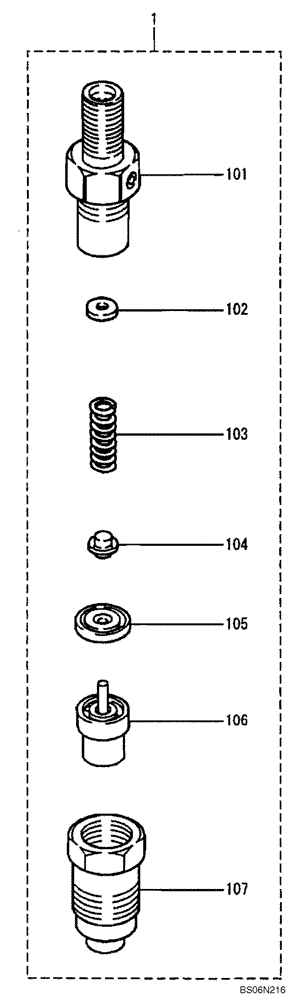

Запчасти Case CX17B (09-018[00]) - FUEL INJECTION NOZZLE (10) - ENGINE

FUEL INJECTION NOZZLE & HOLDER

1шт.

1

VA31A6101010

NOZZLE HOLDER

Nozzle & Holder Assy

3шт.

101

NSS

NOT SOLD SEPARAT

BODY

3шт.

102

VA0931751810

WASHER

Washer; T=1.25

1шт.

102

VA0931751830

WASHER

Washer; T=1.30

1шт.

102

VA0931751850

WASHER

Washer; T=1.35

1шт.

102

VA0931751870

WASHER

Washer; T=1.40

1шт.

102

VA0931751890

WASHER

Washer; T=1.45

1шт.

102

VA0931751910

WASHER

Washer; T=1.50

1шт.

102

VA0931751930

WASHER

Washer; T=1.55

1шт.

102

VA0931751950

WASHER

Washer; T=1.60

1шт.

102

VA0931751970

WASHER

Washer; T=1.65

1шт.

102

VA0931751990

WASHER

Washer; T=1.70

1шт.

103

VA0931270360

SPRING

Spring, Pressure

3шт.

104

VA0931210380

PIN

Pin, Pressure

3шт.

105

VA0931740070

SPACER

Piece, Distance; Spacer

3шт.

106

VA0934006650

NOZZLE

Nozzle Assy

3шт.

107

VA0931641351

NUT

Nut, Nozzle Retaining

3шт.
