(09-017[00]) - FUEL INJECTION SYSTEM

Запчасти Case CX17B (09-017[00]) - FUEL INJECTION SYSTEM (10) - ENGINE

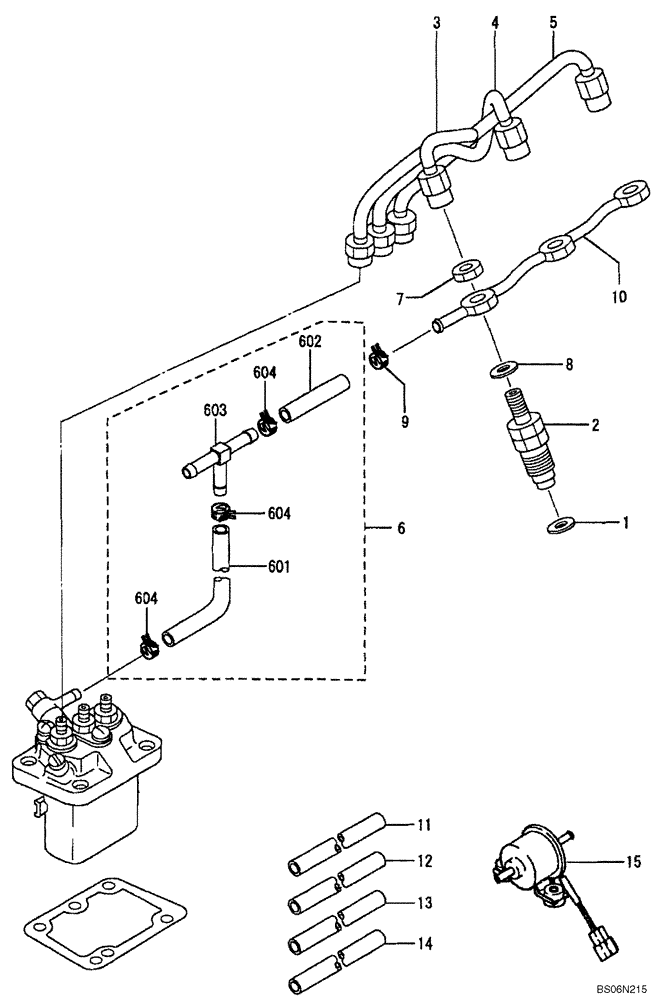

Схема запчастей Case CX17B - (09-017[00]) - FUEL INJECTION SYSTEM (10) - ENGINE
604
12
1
604
601
14
10
602
3
11
6
9
13
8
603
7
5
15
4
604
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NOZZLE & FUEL INJECTION PLUMBING (See Figure 09-022, 09-023 For Fuel Injection Pump)

1шт.

1

VAMD070717

SEAL

Holder

3шт.

2

VA31A6101010

NOZZLE HOLDER

Nozzle & Holder Assy; See Figure 09-018

3шт.

3

VA30L6107400

PIPE

Tube, Injection No. 1

1шт.

4

VA30L6107500

PIPE

Tube, Injection No. 2

1шт.

5

VA30L6107600

PIPE

Tube, Injection No. 3

1шт.

6

VA30L6102900

RETURN PIPE

Tube, Fuel Return

1шт.

601

VAMS604016

HOSE

Hose, Fuel; L=160

1шт.

602

VAMM430131

HOSE

Hose, Fuel

1шт.

603

VA31A6101500

TEE

1шт.

604

VAMS660169

HOSE CLIP

Clip, Hose

3шт.

7

VAMD068353

NUT

Nut

3шт.

8

VAMD068355

GASKET

Fuel Return

3шт.

9

VAF430001200

HOSE CLAMP

Clamp, Hose

1шт.

10

VAMM436471

PIPE

Tube, Fuel Return

1шт.

11

VAMS602131

HOSE

Hose, Fuel; 6 x 900

1шт.

12

VAMS602147

HOSE

Hose, Fuel; 6 x 1300

1шт.

13

VAMS602037

HOSE

Hose, Fuel; 6 x 230

1шт.

14

VAMS602155

HOSE

Hose, Fuel; 6 x 1700

1шт.

15

VA31A6000600

PUMP

Pump Assy, Fuel

1шт.
