(09-013[00]) - OIL SCREEN & OIL FILTER

Запчасти Case CX17B (09-013[00]) - OIL SCREEN & OIL FILTER (10) - ENGINE

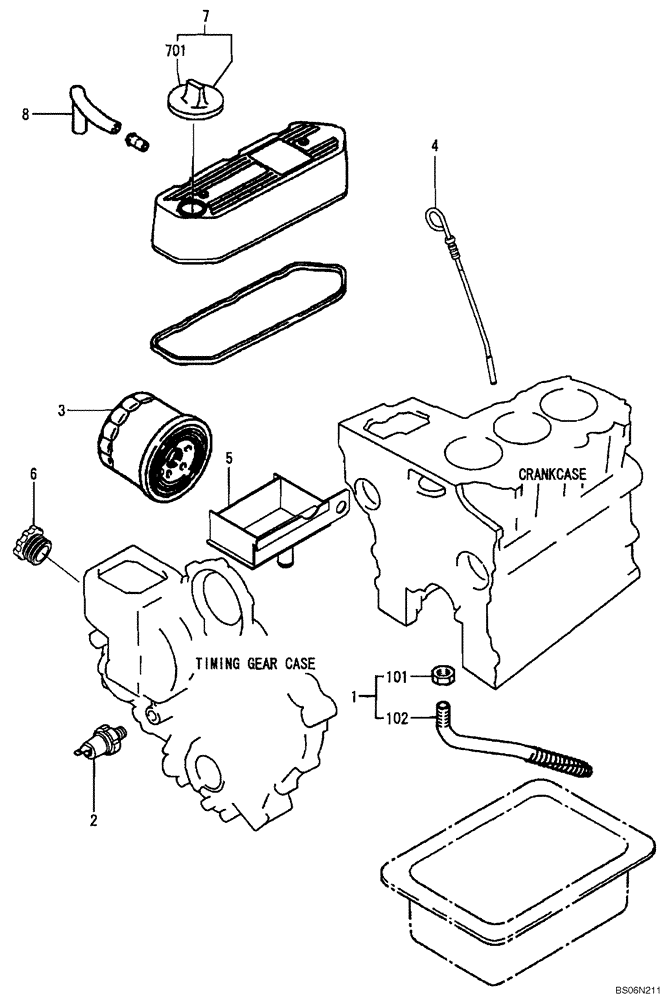

Схема запчастей Case CX17B - (09-013[00]) - OIL SCREEN & OIL FILTER (10) - ENGINE
6
101
5
3
701
1
2
8
102
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

OIL SCREEN & OIL FILTER (See Figure 09-003 For Rocker Cover and Seal)

1шт.

1

VAMM434431

SCREEN

Screen Assy, Oil

1шт.

101

VAMF430728

NUT

Jam

1шт.

102

NSS

NOT SOLD SEPARAT

SCREEN, Oil

1шт.

2

VA31A9000600

SWITCH ASSY

Switch, Oil Pressure

1шт.

3

VA30A4000103

ENGINE OIL FILTER

Filter Assy, Oil

1шт.

4

VA30L4202300

GAUGE

Gage, Oil Level

1шт.

5

VA30L4000300

BOX

Box, Oil Drain

1шт.

6

VA31A4201300

FILLER CAP

Cap, Filler

1шт.

7

VA30L4203020

CAP

Cap Assy, Oil Filler

1шт.

701

VA30L4203200

FILLER CAP

Cap, Oil Filler

1шт.

8

VAMM433709

HOSE

Hose, Breather

1шт.
