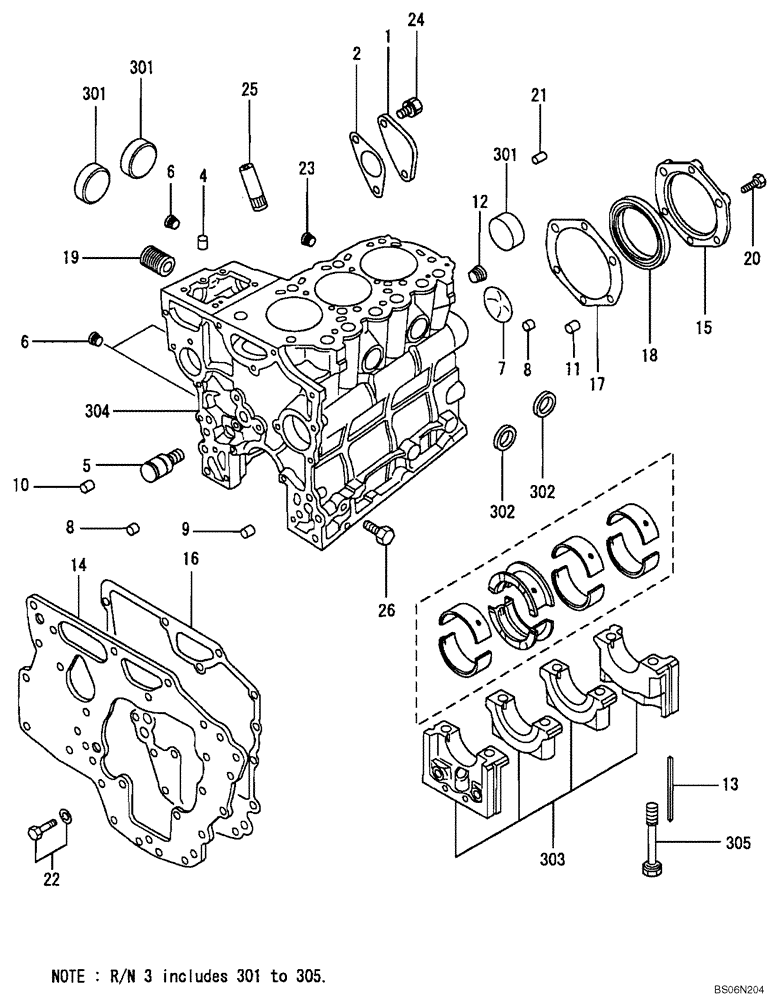

Запчасти Case CX17B (09-005[00]) - CRANKCASE (10) - ENGINE

.

CRANKCASE

1шт.

1

VAMM432677

COVER

Cover

1шт.

2

VA30L0705101

GASKET

Gasket

1шт.

3

VAMM43265005

CYLINDER BLOCK

Block Sub Assy, Cylinder; Incl. 301 - 305

1шт.

301

VAMD000427

PLUG

3шт.

302

VAF501425000

CAP

Sealing

2шт.

303

NSS

NOT SOLD SEPARAT

CAP ASSY, BEARING

1шт.

304

NSS

NOT SOLD SEPARAT

BLOCK, CYLINDER

1шт.

305

VA30L0701100

BOLT

Bolt, Bearing Cap

8шт.

4

VAMM409645

DOWEL

Pin, Dowel

2шт.

5

VA30L0700600

IDLE SHAFT

Shaft, Idler

1шт.

6

VA30L0701800

PLUG

Plug

3шт.

7

VAF501035000

PLUG

Plug, Expansion

1шт.

8

VAMS471101

KNOCKER

Bushing, Knock

2шт.

9

VAMS471102

KNOCKER

Bushing, Knock

1шт.

10

VAMS471105

BUSHING

Bushing, Knock

2шт.

11

VAMS471107

BUSHING

3шт.

12

VAMS661141

PLUG

Plug, Tapered

1шт.

13

VAMM432214

SEAL

Seal, Side

4шт.

14

VA30L0701200

PLATE

Plate, Front

1шт.

15

VAMM432065

OIL SEAL

Case, Oil Seal

1шт.

16

VA30L0705300

GASKET

Gasket, Front Plate

1шт.

17

VA30L0705201

GASKET

Gasket, Oil Seal Case

1шт.

18

VAMD016317

OIL SEAL

Seal, Oil Rear

1шт.

19

VA30L0700700

SHAFT

Shaft, Oil Filter

1шт.

20

VAF103506018

BOLT

Bolt

6шт.

21

VAMF472404

DOWEL

1шт.

22

VAMF241224

BOLT

7шт.

23

VAMD000269

PLUG

Plug, Tapered

1шт.

24

VAMF240051

BOLT

Bolt, W/Washer

2шт.

25

VAMM430613

ELBOW

Guide, Level Gage

1шт.

26

VAF103510020

BOLT

Bolt

4шт.
