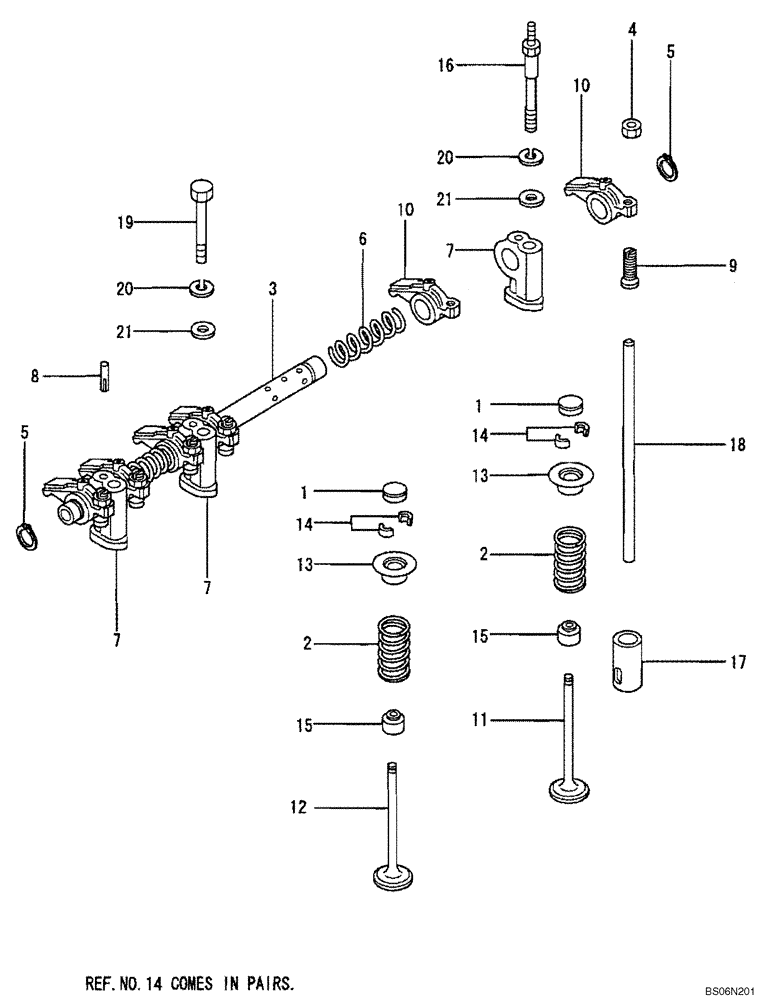

Запчасти Case CX17B (09-002[00]) - VALVE MECHANISM (10) - ENGINE

VALVE DRIVE

1шт.

1

VA31A0400700

CAP

Cap, Valve Stem

6шт.

2

VAMM432668

VALVE SPRING

Spring, Valve

6шт.

3

VA30L0400071

SHAFT ASSY.

Shaft Assy, Rocker

1шт.

4

VAF232006000

NUT

Nut, Jam

6шт.

5

VAF320001200

SNAP RING

Ring, Snap

2шт.

6

VAMM318768

SPRING

Spring, Rocker Shaft

2шт.

7

VAMM318772

STAY

Stay, Rocker

3шт.

8

VAMM432145

GROOVED PIN

Pin, Grooved

1шт.

9

VAMM433312

ADJUSTMENT SCREW

Screw, Adjusting

6шт.

10

VA30L0501100

ROCKER ARM

Arm, Rocker Exhaust

6шт.

11

VA30L0601100

VALVE

Valve, Inlet

3шт.

12

VA30L0601200

VALVE

Valve, Exhaust

3шт.

13

VAMM43330601

RETAINER

Retainer, Valve

6шт.

14

VAMD016483

LOCK

Lock, Valve Spring (Comes in Pairs)

12шт.

15

VAMD115472

SEAL

Seal, Valve Stem

6шт.

16

VA30L0503700

BOLT

Bolt, Rocker Stay

2шт.

17

VAMM434222

TAPPET

Tappet

6шт.

18

VAMM433307

ROD

Rod, Push

6шт.

19

VAF103508060

BOLT

Bolt

1шт.

20

VAF251508000

SPRING WASHER

3шт.

21

VAMS450035

WASHER

Washer, Plain

3шт.
