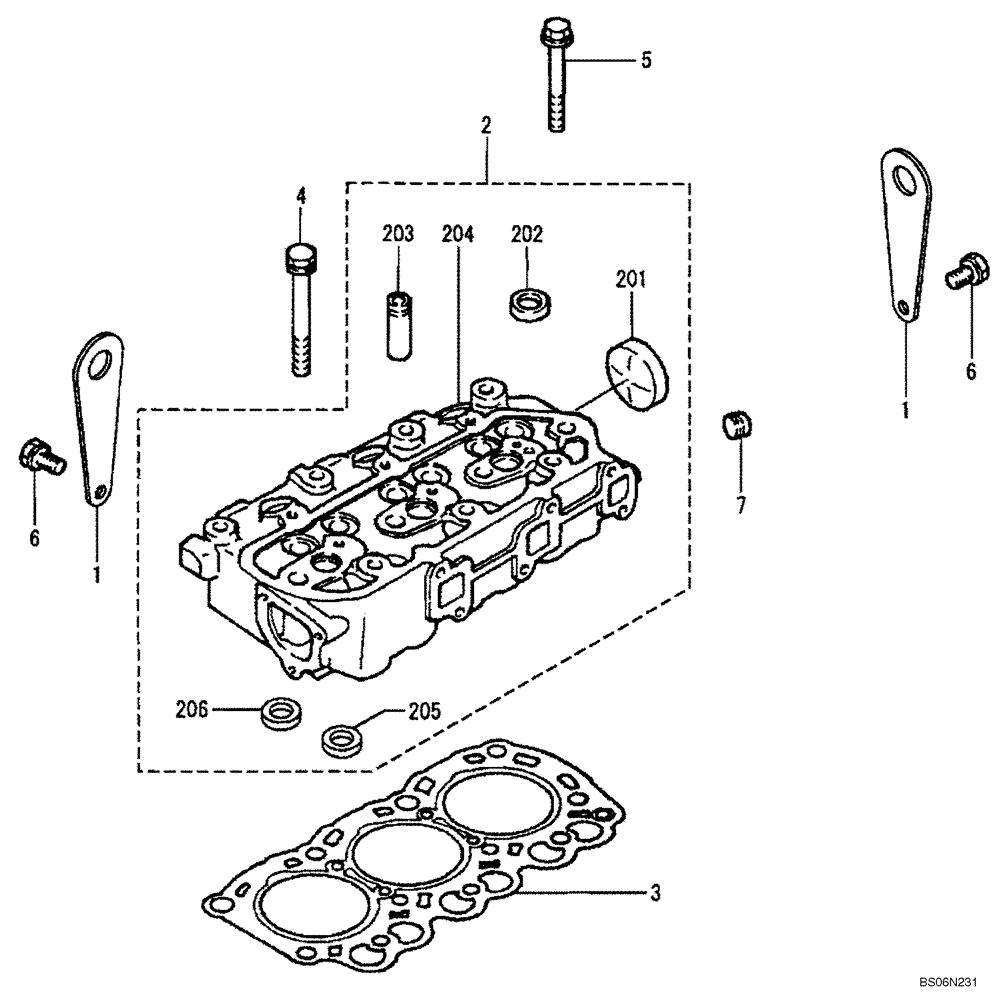

Запчасти Case CX17B (09-001[00]) - CYLINDER HEAD (10) - ENGINE

CYLINDER HEAD

1шт.

1

VA30L0103500

HANGER

Hanger, Engine

2шт.

2

VA30L0121090

CYLINDER HEAD

Head Assy, Cylinder

1шт.

201

VAMD000427

PLUG

1шт.

202

VAMF665536

SEAL

3шт.

203

NSS

NOT SOLD SEPARAT

GUIDE, VALVE

6шт.

204

NSS

NOT SOLD SEPARAT

HEAD, CYLINDER

1шт.

205

VAMM433300

RING

Ring, Valve Seat In

3шт.

206

VAMM433301

RING

Ring, Valve Seat Ex

3шт.

3

VA30L0101102

GASKET

Gasket, Cylinder Head

1шт.

4

VAMM43212501

BOLT

Bolt, Cylinder Head

8шт.

5

VAMD020566

BOLT

Bolt, Flange

3шт.

6

VAMF240051

BOLT

Bolt, W/Washer

2шт.

7

VAMS661140

PLUG

Plug, Tapered

1шт.
