(01-009[00]) - MUFFLER (PU12P00014F1)

Запчасти Case CX17B (01-009[00]) - MUFFLER (PU12P00014F1) (10) - ENGINE

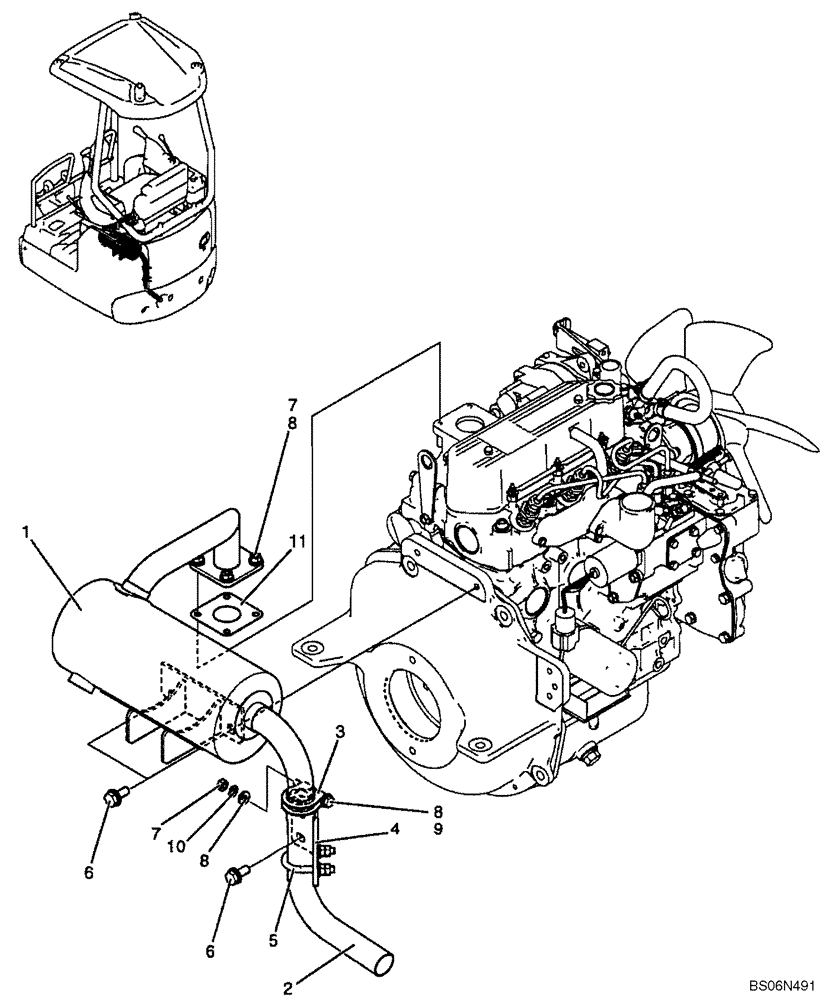

Схема запчастей Case CX17B - (01-009[00]) - MUFFLER (PU12P00014F1) (10) - ENGINE
8
4
11
7
1
6
8
10
9
7
5
6
3
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU12P00014F1

MUFFLER ASSY (PU12P00014F1)

1шт.

1

PU12P00016P1

MUFFLER

Muffler

1шт.

2

PU12P01016P1

EXHAUST SYSTEM PIPE

Tube, Exhaust

1шт.

3

PW12P01031P1

CLAMP

1шт.

4

PU12P01017P1

PLATE

Plate

1шт.

5

2420T2948D18

U-BOLT

1шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer)

4шт.

7

ZN18C08007

NUT

9шт.

8

ZW16H08000

WASHER

8шт.

9

ZS18C08060

SCREW,Hex, M8 x 60mm

1шт.

10

ZW26X08000

LOCK WASHER

1шт.

11

PU12P01019P1

GASKET

Gasket

1шт.
