(05-002[00]) - PEDAL ASSY, OPERATOR CONTROL (PU14M00001F1)

Запчасти Case CX17B (05-002[00]) - PEDAL ASSY, OPERATOR CONTROL (PU14M00001F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

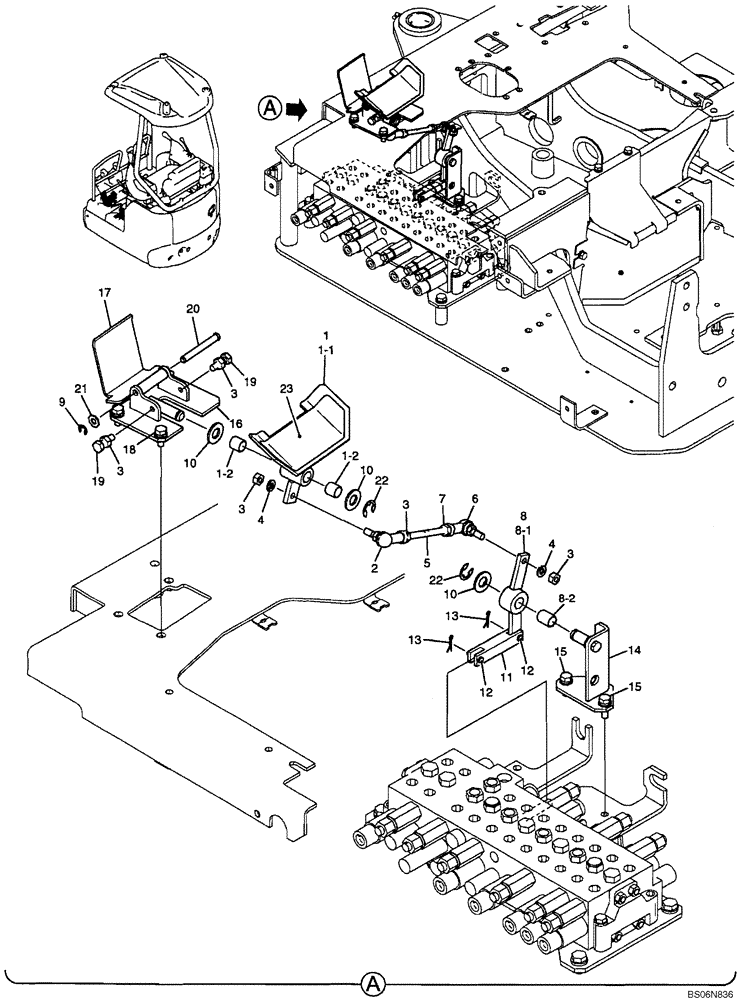

Схема запчастей Case CX17B - (05-002[00]) - PEDAL ASSY, OPERATOR CONTROL (PU14M00001F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
12
9
3
7
12
1-2
17
10
11
8-1
1-2
10
8-2
3
13
22
8
13
5
14
1-1
15
4
1
4
3
22
23
10
6
18
16
19
20
3
21
15
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU14M00001F1

CONTROL

CONTROL ASSY, EXTRA (PEDAL) (PU14M00001F1)

1шт.

1

PU55M00001F1

PEDAL

Pedal Assy

1шт.

1-1

PU55M01012P1

Pedal

1шт.

1-2

2405R312D1415

BUSHING

2шт.

2

HR37C08000G1

BALL JOINT

Replaces 2425R227D2, M08x1.25x45.5mm Long

1шт.

3

ZN18C08007

NUT

5шт.

4

ZW26X08000

LOCK WASHER

2шт.

5

PU14M01007P1

ROD

Rod

1шт.

6

PN03M01010P1

ROD

Ball Joint

1шт.

7

2420T7359

NUT

1шт.

8

PU14M01001F1

LEVER

Lever Assy

1шт.

8-1

PU14M01002P1

Lever

1шт.

8-2

2405R312D1420

BUSHING

1шт.

9

ZR36X00700

RING

Retaining

1шт.

10

ZW16P14000

WASHER

3шт.

11

PU14M01006P1

YOKE

Yoke

1шт.

12

PA50M01070P2

PIN

2шт.

13

2419R9D1

COTTER PIN

2шт.

14

PU14M01008P1

SUPPORT

Support

1шт.

15

ZM22C08025

BOLT

2шт.

16

PU14M01016P1

SUPPORT

Support

1шт.

17

PM03M01277F1

COVER ASSY

1шт.

18

ZM22C08020

BOLT

3шт.

19

ZS18C08025

SCREW,Hex, M8 x 25mm

2шт.

20

PM03M01308P1

PIN

1шт.

21

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

1шт.

22

ZR36X01200

RING

Retaining

2шт.

23

PM55M01002P1

SHEET

1шт.
