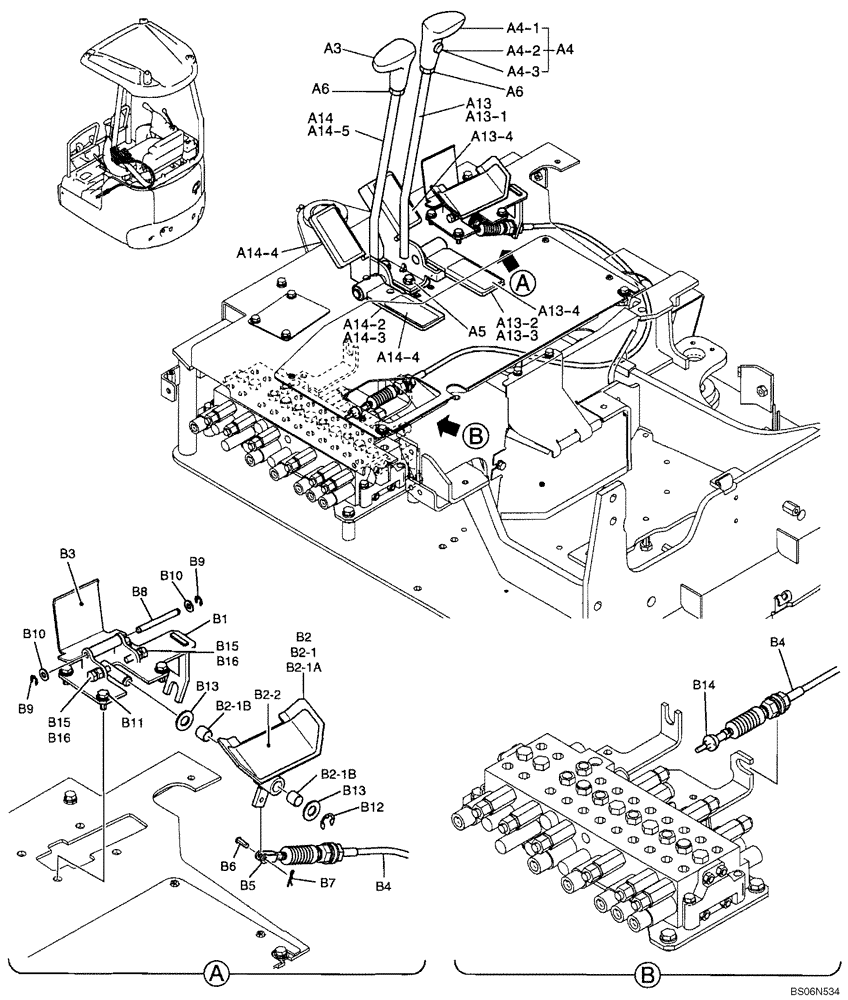

Запчасти Case CX17B (01-029[00]) - LEVER ASSY, CONTROL (PM50M00004F3) & PEDAL INSTAL (PU55M00003F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PM50M00004F3

LEVER ASSY, CONTROL (PM50M00004F3)

1шт.

a3

YN03M01040P1

GRIP

1шт.

a4

YN03M01286F1

GRIP

1шт.

a4-1

YN03M01286S001

GRIP

1шт.

a4-2

YN03M01286S002

SWITCH

1шт.

a4-3

YN03M01286S003

CAP

1шт.

a5

PA21C01133P1

BOLT

4шт.

a6

2420Z1232

NUT

2шт.

a13

PF50M01025F1

LEVER ASSY.

1шт.

a13-1

PF50M01022P1

LEVER

1шт.

a13-2

PF55M01007P1

PEDAL

1шт.

a13-3

ZR36X01200

RING

Retaining

1шт.

a13-4

PF55M01006P1

SEAT

3шт.

a14

PF50M01025F2

LEVER ASSY.

1шт.

a14-2

PF55M01007P1

PEDAL

1шт.

a14-3

ZR36X01200

RING

Retaining

1шт.

a14-4

PF55M01006P1

SEAT

3шт.

a14-5

PF50M01023P1

LEVER

1шт.

PU55M00003F1

PEDAL INSTAL (PU55M00003F1)

1шт.

b1

PU03M01277P1

SUPPORT

Support

1шт.

b2

PU55M00002F1

PEDAL

Pedal Assy

1шт.

b2-1

PU55M01020F1

PEDAL

Pedal

1шт.

b2-1a

PU55M01018P1

PEDAL

Pedal

1шт.

b2-1b

2405R312D1415

BUSHING

2шт.

b2-2

PM55M01002P1

SHEET

1шт.

b3

PM03M01277F1

COVER ASSY

1шт.

b4

PM03M01448DD

CABLE

Cable, Control

1шт.

b5

PM03M01451P1

ROD

End

1шт.

b6

ZP45X06018

PIN

1шт.

b7

2419R9D1

COTTER PIN

1шт.

b8

PW03M01805P1

PIN

Pin

1шт.

b9

ZR36X00700

RING

Retaining

2шт.

b10

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

2шт.

b11

PU03M01279P1

BOLT

Bolt

4шт.

b12

ZR36X01200

RING

Retaining

1шт.

b13

ZW16P14000

WASHER

2шт.

b14

2420R736D2

END

Rod

1шт.

b15

ZS18C08025

SCREW,Hex, M8 x 25mm

2шт.

b16

ZN18C08007

NUT

2шт.
