(01-024[00]) - WRIST SUPPORT, OPERATOR CONTROLS (PU03M01368F1)

Запчасти Case CX17B (01-024[00]) - WRIST SUPPORT, OPERATOR CONTROLS (PU03M01368F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

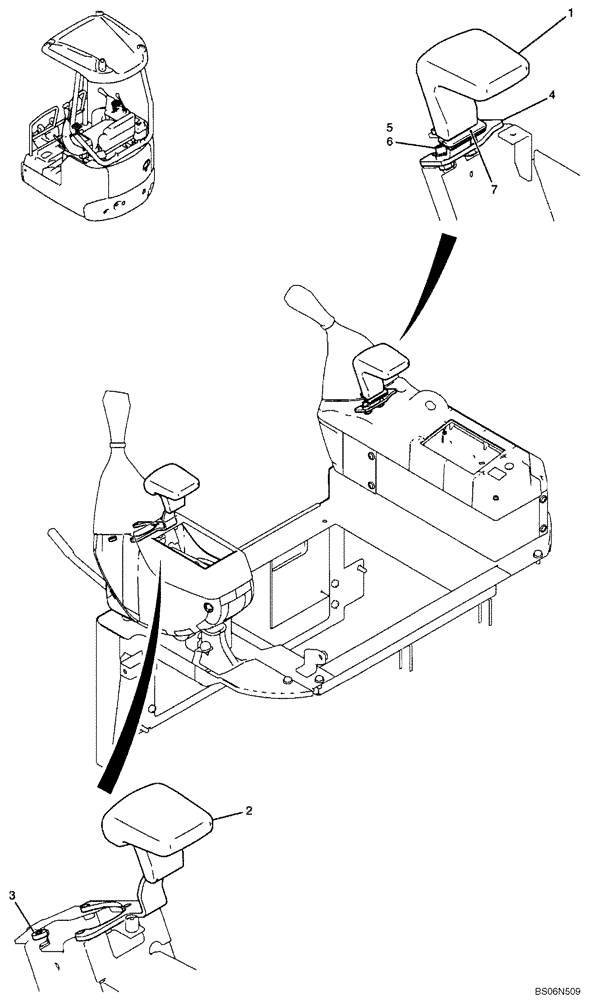

Схема запчастей Case CX17B - (01-024[00]) - WRIST SUPPORT, OPERATOR CONTROLS (PU03M01368F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
7
1
3
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU03M01368F1

SUPPORT ASSY, WRIST; OPERATOR CONTROLS (PU03M01368F1)

1шт.

1

PU03M01378P1

SUPPORT

1шт.

2

PU03M01379P1

SUPPORT

1шт.

3

PV03M01135P1

SPACER

1шт.

4

PU03M01375P1

PLATE

1шт.

5

ZS28C06018

SCREW,Hex Socket Head, M6 x 18mm

2шт.

6

ZW16X06000

WASHER

2шт.

7

PU03M01377P1

GROMMET

1шт.
