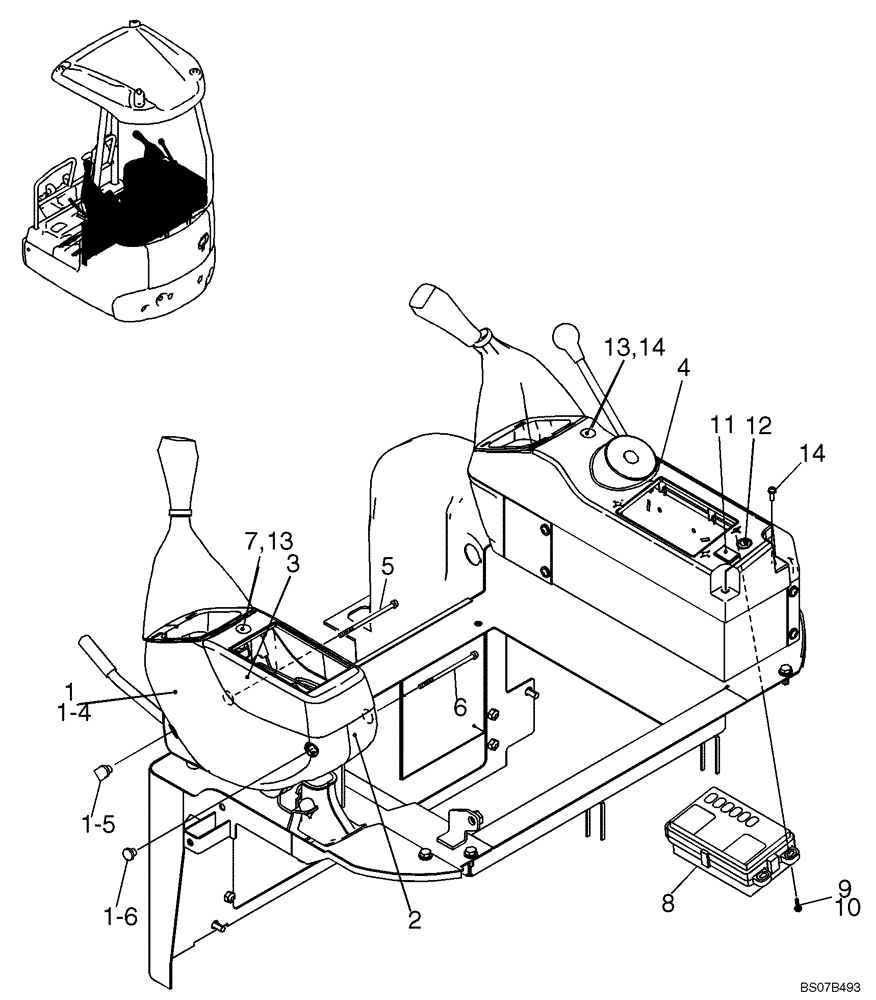

Запчасти Case CX17B (01-023[00]) - COVER ASSY, OPERATOR CONTROLS (PU03M01396F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PU03M01396F1

COVER ASSY, OPERATOR CONTROLS (PU03M01396F1)

1шт.

1

PF03M01041F2

COVER ASSY

Assy

1шт.

1-4

PF03M01038D2

COVER

1шт.

1-5

PF03M01039D2

CAP

Cover

1шт.

1-6

PF03M01040D2

CAP

1шт.

2

PF03M01037D2

COVER

Cap

1шт.

3

PE17M01012D3

COVER

Cover

1шт.

4

PU03M01397P1

COVER

Cover

1шт.

5

PA03M01084D1

BOLT

1шт.

6

PA03M01084D3

BOLT

1шт.

7

ZM46C05016

BOLT,Phillip, M5 x 0.8 x 15mm

1шт.

8

PU59S00001F1

GAUGE

Gauge, Cluster; See Figure 01-040

1шт.

9

ZS32T40020

SCREW

Cross, Tapping

4шт.

10

ZW16K04000

WASHER

4шт.

11

YN17M01032P1

CAP

Cap

1шт.

11

PV24E01001P2

SWITCH

Boom & Machine Work Light

1шт.

12

PW17M01021P1

CAP

1шт.

12

PY50S00004P2

SWITCH

Wiper/Washer

1шт.

13

PW03M01678P1

CAP

2шт.

14

PW03M01717D1

BOLT,Torx, Truss HD, M5 x 0.8 x 16mm

3шт.
