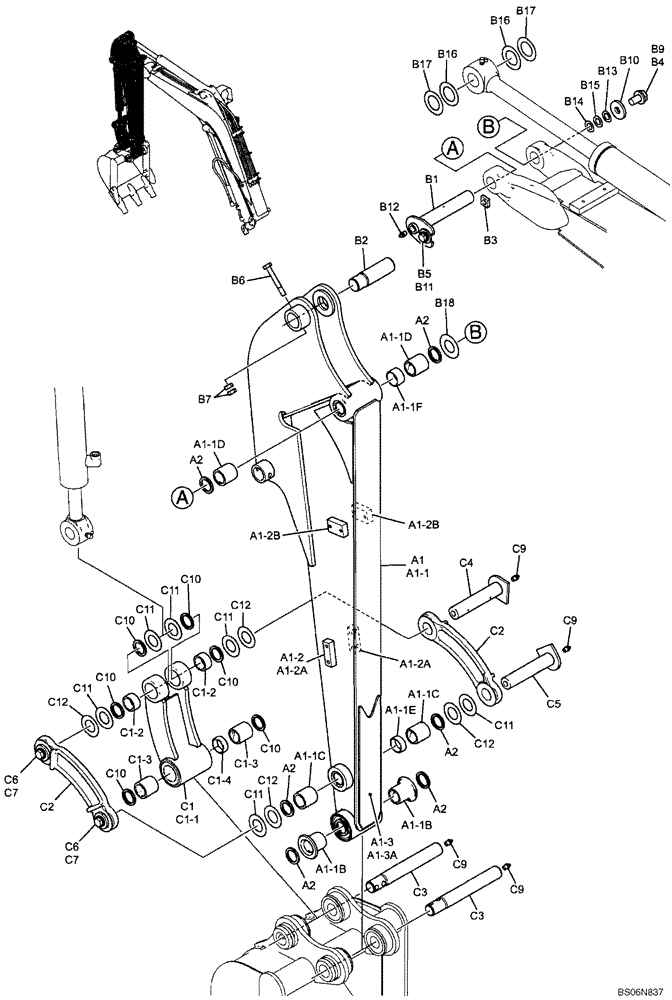

Запчасти Case CX17B (05-003[00]) - ARM ASSY, LONG 1.20M (4 FT) (PU12B00052F1) (84) - BOOMS, DIPPERS & BUCKETS

PU12B00052F1

ARM ASSY, LONG 1.20M (4 FT) (PU12B00052F1)

1шт.

a1

PU12B00053F1

ARM

Arm, Long

1шт.

a1-1

PU12B00047F1

ARM

Long

1шт.

a1-1b

PE12B01038P2

BUSHING,30mm ID x 61mm OD x 45mm L

2шт.

a1-1c

PE12B01075P1

BUSHING,30mm ID x 40mm OD x 40mm L

2шт.

a1-1d

PE12B01074P1

BUSHING

2шт.

a1-1e

PE12B01036D1

COLLAR

1шт.

a1-1f

PE12B01036D2

COLLAR

Collar

1шт.

a1-2

PU12B00048P1

Arm, Long

1шт.

a1-2a

PV12B01227P1

BLOCK

Tapped

2шт.

a1-2b

PX12B01185P1

BLOCK

Tapped

2шт.

a1-3

PU12B00051P1

Arm Assy

1шт.

a1-3a

PU12B01163P1

Plate

1шт.

a2

PN54D01001D1

DUST CAP

Seal, Dust

6шт.

PU12B00037F1

ARM INSTAL (PU12B00037F1)

1шт.

b1

PU12B01143P1

PIN

Pin

1шт.

b2

PU12B01139P1

PIN

Pin

1шт.

b3

PA12B01030P1

COLLAR

1шт.

b4

ZS18C16030

SCREW,Hex, M16 x 30mm

1шт.

b5

ZM73C10030

BOLT,M10x30mm - Course Thread

Bolt

1шт.

b6

HS18C10075G2

SCREW

1шт.

b7

ZN18C10008

NUT

2шт.

b9

ZW16H16000

WASHER

1шт.

b10

PA12B01066P1

WASHER

1шт.

b11

PA12B01031P1

WASHER

1шт.

b12

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

b13

PB02B01012D1

SHIM,0.5mm Thk

1шт.

b14

PB02B01012D2

SHIM,0.9mm Thk

1шт.

b15

PB02B01012D3

SHIM,1.2mm Thk

1шт.

b16

PR02B01109P1

SHIM,0.5mm Thk

1шт.

b17

PR02B01122D1

SHIM,0.9mm Thk

1шт.

b18

PA12B01077P1

SHIM,0.5mm Thk

1шт.

PU12B00038F1

ARM GROUP (PU12B00038F1)

1шт.

c1

PU12B01134F1

LINK

Link, Bucket

1шт.

c1-1

PU12B01135P1

Link, Bucket

1шт.

c1-2

PU12B01146P1

BUSHING

Bushing

2шт.

c1-3

PE12B01075P1

BUSHING,30mm ID x 40mm OD x 40mm L

2шт.

c1-4

PE12B01036D1

COLLAR

1шт.

c2

PU12B01140P1

LINK

Link

2шт.

c3

PE12B01073P2

PIN

2шт.

c4

PE12B01083P1

COTTER PIN

1шт.

c5

PE12B01085P1

COTTER PIN

1шт.

c6

ZM73C12025

BOLT,M12x25mm - Course Thread

Bolt

2шт.

c7

PE12B01057P1

WASHER

2шт.

c9

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

4шт.

c10

PN54D01001D1

DUST CAP

Seal, Dust

6шт.

c11

PE12B01048D2

SHIM,1.0mm Thk

6шт.

c12

PE12B01087P1

SHIM,0.5mm Thk

4шт.
